Installation [12/2013 - ]: Procedure

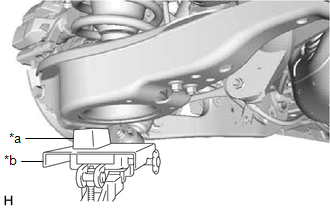

1. Support the rear No. 2 suspension arm assembly using a jack and wooden block.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Jack

   WARNING:

   Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.

   NOTE:

   When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.

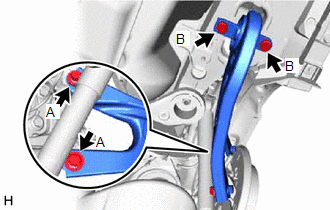

2. Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 2 bolts (A) and 2 washers.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 150 N*m (1530 kgf*cm, 111 ft.*lbf)

3. Install the rear trailing arm assembly to the body with the 2 bolts (B).

   Torque: 150 N*m (1530 kgf*cm, 111 ft.*lbf)

4. Slowly lower the rear No. 2 suspension arm assembly.

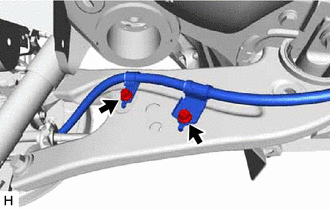

5. Install the No. 3 parking brake cable assembly to the rear trailing arm assembly with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)

   NOTE:

   Do not twist the No. 3 parking brake cable assembly when installing it.

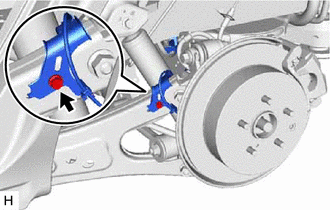

1. Install the rear speed sensor to the rear trailing arm assembly with the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   NOTE:

   Do not twist the rear speed sensor when installing it.

See step  6 , or see step  6

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

Refer to ADJUSTMENT [12/2013 - 11/2016] , or refer to ADJUSTMENT [11/2016 - ]
