Removal [12/2013 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [12/2013 - 11/2016] , or refer to PRECAUTION [11/2016 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [12/2013 - 11/2016] , or refer to INITIALIZATION [11/2016 - ]
- REMOVE REAR WHEEL
- REMOVE REAR SUSPENSION ARM COVER
Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2
- SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
Refer to PROCEDURE - Step 12
- REMOVE REAR DISC
Refer to PROCEDURE - Step 13

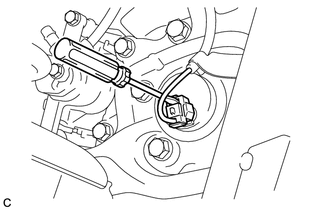

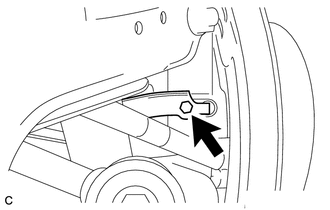

- SEPARATE SKID CONTROL SENSOR WIRE
- REMOVE REAR AXLE HUB AND BEARING ASSEMBLY
- Remove the rear axle hub and bearing assembly.
Refer to PROCEDURE - Step 9
HINT:
- The rear speed sensor is a component of the rear axle hub and bearing assembly. If the rear speed sensor is malfunctioning, replace the rear axle hub and bearing assembly.
- If the rear speed sensor rotor needs to be replaced, replace the rear axle hub and bearing assembly.
- Remove the rear axle hub and bearing assembly.
