Removal [12/2013 - ]: Procedure

  1. REMOVE REAR WHEEL
  2. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

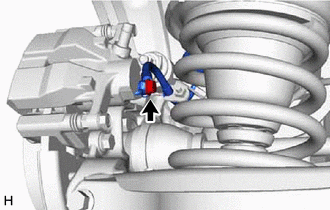

  3. DISCONNECT REAR FLEXIBLE HOSE
    1. Remove the union bolt and gasket, and disconnect the rear flexible hose from the rear disc brake cylinder assembly.
      GTY426036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

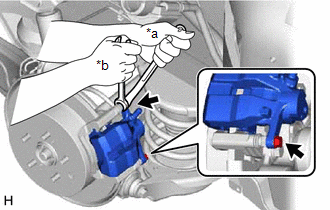

  4. REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY
    1. Hold the 2 rear disc brake cylinder slide pins and remove the 2 bolts and rear disc brake cylinder assembly.
      GTY434729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold

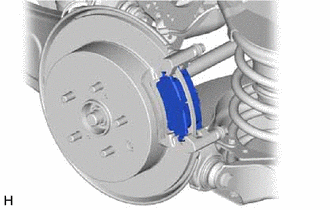

  5. REMOVE REAR DISC BRAKE PAD
    1. Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.
      GTY426003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT
    1. Remove the rear disc brake anti-squeal shim from each rear disc brake pad.
    2. Using a screwdriver, remove the rear disc brake pad wear indicator plate from each rear disc brake pad.
      GTY450879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

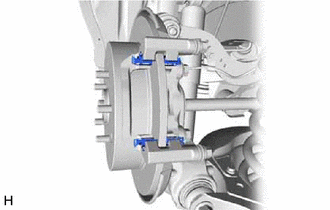

  7. REMOVE REAR DISC BRAKE PAD SUPPORT PLATE
    1. Remove the 4 rear disc brake pad support plates from the rear disc brake cylinder mounting.
      GTY426006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Each rear disc brake pad support plate has a different shape. Be sure to put an identification mark on each rear disc brake pad support plate so that it can be reinstalled to its original position.

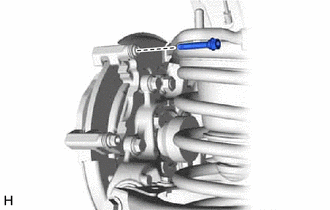

  8. REMOVE REAR NO. 2 DISC BRAKE CYLINDER SLIDE PIN
    1. GTY426004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the rear No. 2 disc brake cylinder slide pin from the rear disc brake cylinder mounting.

    2. Using a screwdriver with its tip wrapped with protective tape, remove the rear disc brake cylinder slide bushing from the rear No. 2 disc brake cylinder slide pin.
      NOTE:

      Do not damage the rear No. 2 disc brake cylinder slide pin.

      GTY426895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

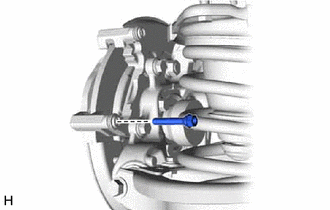

  9. REMOVE REAR NO. 1 DISC BRAKE CYLINDER SLIDE PIN
    1. GTY426007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the rear No. 1 disc brake cylinder slide pin from the rear disc brake cylinder mounting.

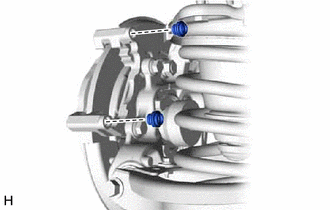

  10. REMOVE REAR DISC BRAKE BUSHING DUST BOOT
    1. Remove the 2 rear disc brake bushing dust boots from the rear disc brake cylinder mounting.
      GTY426009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

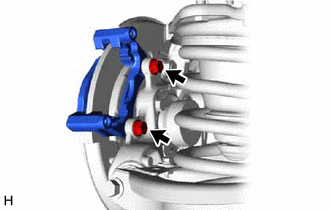

  11. REMOVE REAR DISC BRAKE CYLINDER MOUNTING
    1. Remove the 2 bolts and rear disc brake cylinder mounting from the rear axle carrier sub-assembly.
      GTY426010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
    1. Remove the parking brake shoe adjusting hole plug.
  13. REMOVE REAR DISC
    1. Put matchmarks on the rear disc and the rear axle hub and bearing assembly.
      GTY455020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Release the parking brake and remove the rear disc.

      HINT:

      If the rear disc cannot be removed easily, use a screwdriver to turn the shoe adjuster as shown in the illustration in order to contract the parking brake shoes.

      GTY433251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Contract
