Removal [10/2014 - ]: Procedure

REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1 and PROCEDURE - Step 1
REMOVE INLET NO. 2 AIR CLEANER
Refer to PROCEDURE - Step 18
REMOVE AIR CLEANER CAP SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
REMOVE AIR CLEANER CASE SUB-ASSEMBLY
Refer to PROCEDURE - Step 21

SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY

Move the shift lever to N.

Disconnect the wire harness clamp from the wire harness clamp bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

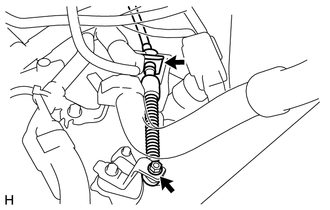

Remove the clip and nut, and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket and control shaft lever.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Disconnect the connector from the park/neutral position switch assembly.

Remove the nut, washer and control shaft lever from the manual valve lever shaft.

Remove the 2 bolts and park/neutral position switch assembly from the manual valve lever shaft.

NOTE:

Before removing the park/neutral position switch assembly, remove any foreign matter or rust on the installation portion of the manual valve lever shaft. Be sure to remove the switch straight along the shaft while being careful not to deform the plate spring that supports the shaft. If the plate spring is deformed, the park/neutral position switch assembly cannot be reinstalled correctly.
