Removal [10/2014 - ]: Procedure

  1. DRAIN AUTOMATIC TRANSAXLE FLUID

    See step  1

  2. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  3. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 and PROCEDURE - Step 1

  4. REMOVE INLET NO. 2 AIR CLEANER

    Refer to PROCEDURE - Step 18

  5. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  6. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
  7. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  8. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 23

  9. REMOVE TRANSMISSION OIL COOLER

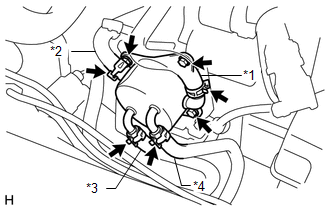

    1. Slide the 4 clamps and disconnect the No. 3 water by-pass hose, No. 4 water by-pass hose, No. 1 oil cooler outlet hose and No. 1 oil cooler inlet hose from the transmission oil cooler.
      GTY564232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 No. 3 Water By-pass Hose
      *2 No. 4 Water By-pass Hose
      *3 No. 1 Oil Cooler Outlet Hose
      *4 No. 1 Oil Cooler Inlet Hose
    2. Remove the 3 bolts, transmission oil cooler and transmission oil cooler stay from the front engine mounting bracket.
