Installation [10/2014 - ]: Procedure

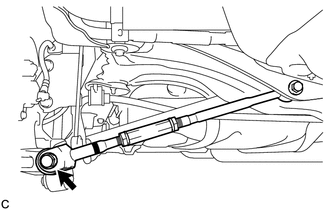

1. Temporarily install the rear No. 2 suspension arm assembly (inner side) to the rear suspension member sub-assembly with the bolt.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   	Bolt
   	Paint Mark

   HINT:

   Ensure that the paint mark is facing the rear of the vehicle.

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 10

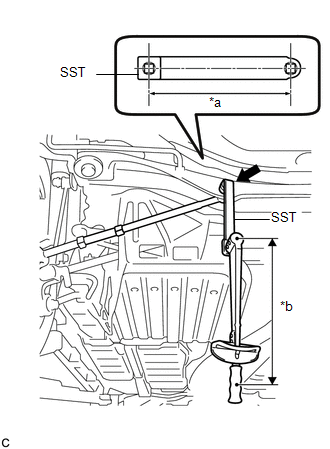

1. Using SST, fully install the rear No. 2 suspension arm assembly (inner side) with the bolt.
   • SST: 09961-00950

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *a	SST Fulcrum Length
   *b	Torque Wrench Fulcrum Length

   Specified Tightening Torque

   Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

   NOTE:

   This torque value is effective when SST is parallel to the torque wrench.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length for the torque wrench (Refer to PRECAUTION [10/2014 - ] ).
   • When using SST (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 380 mm (1.25 ft.)):

     72 N*m (731 kgf*cm, 53 ft.*lbf)

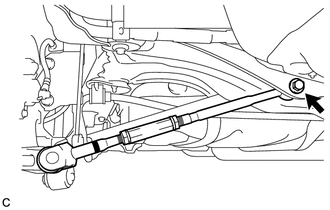

2. Fully install the rear No. 2 suspension arm assembly (outer side) with the bolt.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

(Refer to INSTALLATION [10/2014 - ] )

HINT:

It is necessary to install the rear height control sensor sub-assembly when installing the rear No. 2 suspension arm assembly RH.

(Refer to PROCEDURE - Step 7 )

Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)

(Refer to ADJUSTMENT [10/2014 - 10/2015] Refer to ADJUSTMENT [10/2015 - ] )
