Installation [10/2014 - ]: Procedure

1. Install the rear axle carrier sub-assembly to the rear shock absorber assembly with the 2 bolts and 2 nuts.

   Torque: 290 N*m (2957 kgf*cm, 214 ft.*lbf)

   NOTE:

   While keeping the bolts from rotating, tighten the nuts.

   HINT:

   Insert the bolts from the rear of the vehicle.

1. Connect the rear No. 1 suspension arm assembly (outer side) to the rear axle carrier sub-assembly with the bolt and nut.
   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   HINT:

   Insert the bolt from the front of the vehicle.

1. Connect the rear No. 2 suspension arm assembly (outer side) to the rear axle carrier sub-assembly with the bolt and nut.
   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   HINT:

   Insert the bolt from the rear of the vehicle.

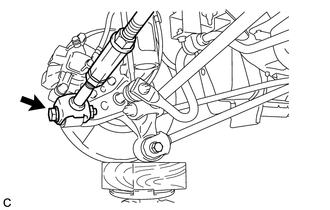

1. Temporarily tighten the rear strut rod assembly (rear side) to the rear axle carrier sub-assembly with the bolt and nut.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   HINT:

   Insert the bolt from the inside of the vehicle.

See step  1

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

See step  9

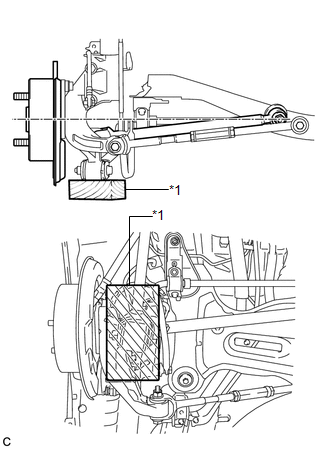

1. Jack up the rear axle carrier sub-assembly, placing a wooden block under it to avoid damage. Apply load to the suspension so that the installed bolt of the rear No. 1 suspension arm assembly (inner side) is horizontally aligned with the center of the rear axle hub.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   TEXT IN ILLUSTRATION



   *1	Wooden Block

   WARNING:

   Do not jack up the rear axle carrier sub-assembly too high as the vehicle may fall.

   NOTE:

   • When jacking up the rear axle carrier sub-assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.

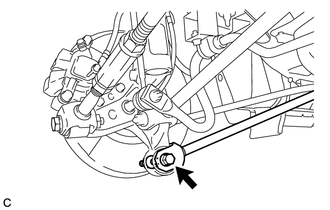

1. Fully tighten the bolt.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

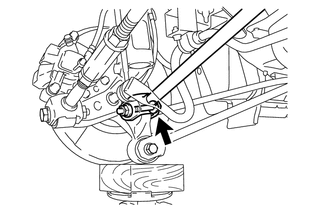

1. Fully tighten the bolt.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

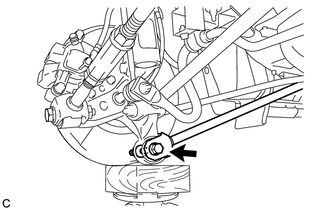

1. Fully tighten the bolt.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   Torque: 80 N*m (816 kgf*cm, 59 ft.*lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

(Refer to INSTALLATION [10/2014 - ] )

HINT:

It is necessary to install the rear height control sensor sub-assembly when installing the rear No. 2 suspension arm assembly RH.

(Refer to ADJUSTMENT [10/2014 - ] )

Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)

(Refer to ADJUSTMENT [10/2014 - 10/2015] Refer to ADJUSTMENT [10/2015 - ] )

(Refer to TEST MODE PROCEDURE [10/2014 - 10/2015] Refer to TEST MODE PROCEDURE [10/2015 - ] )
