Installation [10/2014 - ]: Procedure

  1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

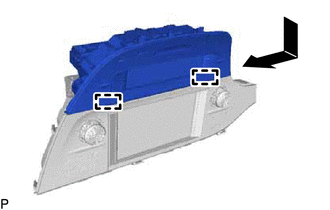

    1. Engage the 2 guides and install the air conditioning control assembly as shown in the illustration.
      GTY382875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 RADIO RECEIVER BRACKET

    Refer to PROCEDURE - Step 5

  3. INSTALL NO. 1 RADIO RECEIVER BRACKET

    Refer to PROCEDURE - Step 6

  4. INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 7

  5. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY (for Radio and Display Type)

    Refer to PROCEDURE - Step 8

  6. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY (for Navigation Receiver Type)

    Refer to PROCEDURE - Step 8

  7. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 5

  8. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8

  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Navigation Receiver Type)
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] Refer to INITIALIZATION [10/2015 - ] ).
