Removal [10/2014 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).
- DISCHARGE FUEL SYSTEM PRESSURE
(Refer to PRECAUTION [10/2014 - ] )
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 1
- REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
(Refer to REMOVAL [10/2014 - ] )
- REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 17
- REMOVE AIR CLEANER CAP SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE INTAKE AIR SURGE TANK ASSEMBLY
- Slide the clip and disconnect the ventilation hose from the intake air surge tank assembly.
- Slide the clip and disconnect the union to check valve hose from the intake manifold.
- Disconnect the union to check valve hose from the hose clamp.

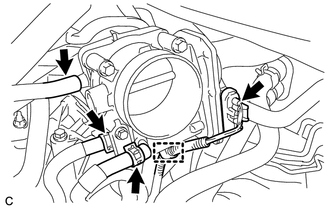

- Disconnect the connector and wire harness clamp from the throttle body assembly.

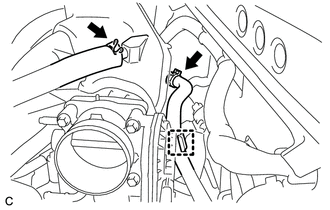

- Slide the 2 clips and disconnect the 2 water by-pass hoses.
- Disconnect the fuel vapor feed hose.
- Disconnect the connector from the intake air control valve assembly.
- Remove the bolt and vacuum hose clamp from the throttle body bracket.

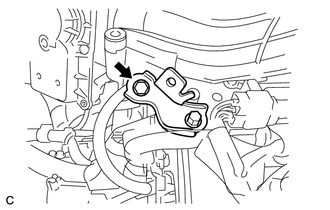

- Remove the bolt and separate the throttle body bracket from the intake air surge tank assembly.

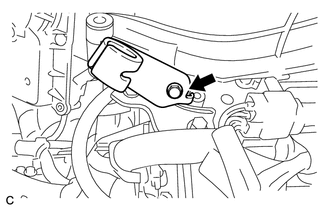

- Remove the bolt and separate the No. 1 surge tank stay from the intake air surge tank assembly.

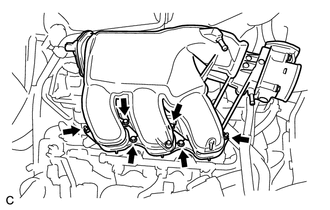

- Remove the 2 nuts from the intake air surge tank assembly.
- Using a 5 mm socket hexagon wrench, remove the 4 bolts.
- Remove the intake air surge tank assembly and 3 gaskets.
- Slide the clip and disconnect the ventilation hose from the intake air surge tank assembly.
- REMOVE NO. 2 ENGINE MOUNTING STAY RH (for Engine Mounting Stay Side)
Refer to PROCEDURE - Step 25
- REMOVE NO. 2 ENGINE MOUNTING STAY RH (for Intake Manifold Side)
Refer to PROCEDURE - Step 6
- DISCONNECT FUEL TUBE SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
- REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
Refer to PROCEDURE - Step 6

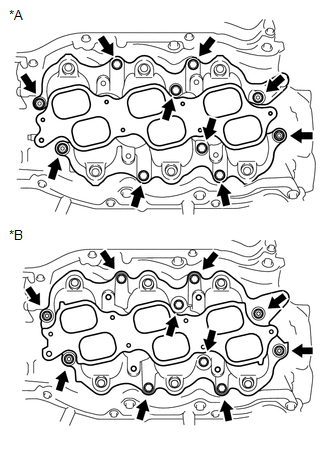

- REMOVE INTAKE MANIFOLD
