Installation [10/2014 - ]: Procedure
- INSTALL BRAKE PEDAL SUPPORT ASSEMBLY
- Install the brake pedal support assembly with the 4 nuts.
Torque: 13 N*m (131 kgf*cm, 9 ft.*lbf)
- Engage the 3 clamps to install the wire harness to the brake pedal support assembly.
- Connect the brake pedal load sensing switch connector and engage the clamp.
- Install the brake pedal support assembly with the 4 nuts.
- INSTALL BRAKE PEDAL RETURN SPRING
- Install the brake pedal return spring to the brake pedal support assembly.NOTE:
Attach the bottom part of the brake pedal return spring first, making sure that the open part of the hook is facing the rear of the vehicle. Attach the top part of the brake pedal return spring second, making sure that the open part of the hook is facing the front of the vehicle.
- Install the brake pedal return spring to the brake pedal support assembly.
- INSTALL PUSH ROD PIN
- Apply lithium soap base glycol grease to the push rod pin.TEXT IN ILLUSTRATION

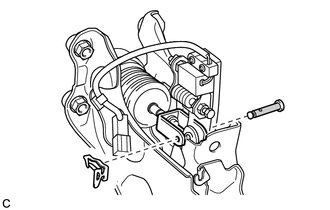

Lithium Soap Base Glycol Grease - Connect the brake master cylinder push rod clevis to the brake pedal support assembly with the push rod pin, and install a new clip as shown in the illustration.NOTE:
- Be sure to insert the pin with its clip end facing the outside of the vehicle.
- Make sure that the brake master cylinder push rod clevis moves sideway.
- Apply lithium soap base glycol grease to the push rod pin.
- INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER
Refer to PROCEDURE - Step 1
- INSTALL STOP LIGHT SWITCH ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL HEADLIGHT LEVELING ECU ASSEMBLY (w/ Automatic Headlight Beam Level Control System)
Refer to PROCEDURE - Step 1 and PROCEDURE - Step 1
- INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT
(Refer to PROCEDURE - Step 2 and PROCEDURE - Step 2 )
- INSPECT AND ADJUST BRAKE PEDAL
(Refer to ADJUSTMENT [10/2014 - ] )
