Removal [10/2014 - 10/2015]: Procedure

  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 4

  3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 11

  5. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 12

  6. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  7. REMOVE LOWER NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  8. REMOVE LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY

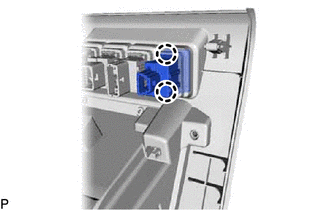

    1. Disengage the 2 claws to remove the luggage door opening switch assembly.
      GTY377300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
