Installation [10/2014 - ]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Engage the clamp.
    2. Connect the 2 connectors.
    3. Engage the 2 clips.
    4. Install the combination meter assembly with the 2 screws.
  2. INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 34

  3. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY (for Radio and Display Type)

    Refer to PROCEDURE - Step 8

  4. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY (for Navigation Receiver Type)

    Refer to PROCEDURE - Step 8

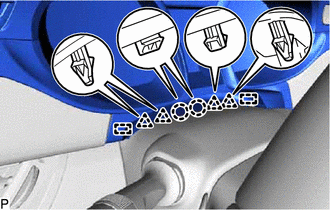

  5. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    1. Connect the connector.
    2. Engage the 18 clips and 2 guides.
    3. Engage the 2 claws, 4 clips and 2 guides to install the instrument cluster finish panel assembly.
      GTY383573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 8 and PROCEDURE - Step 8

  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] or INITIALIZATION [10/2015 - ] ).
