Removal [08/2019 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2019 - 08/2022] , or refer to INITIALIZATION [08/2022 - ]

  2. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 2

  4. REMOVE HEATER CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKETS

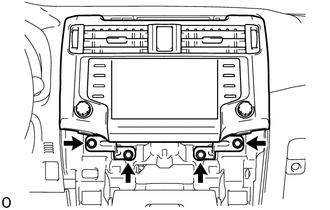

    1. Remove the 4 bolts.
      GTY865661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

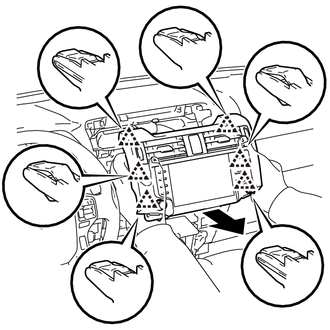

    2. Pull the radio and display receiver assembly with brackets as shown in the illustration to detach the 6 clips on the backside of the radio and display receiver assembly with brackets.
      GTY857570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect each connector to remove the radio and display receiver assembly with brackets.
  6. REMOVE HAZARD SWITCH WIRE

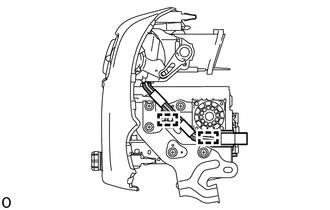

    1. Detach the 2 clamps.
      GTY932234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the hazard switch wire.
  7. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    GTY934505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

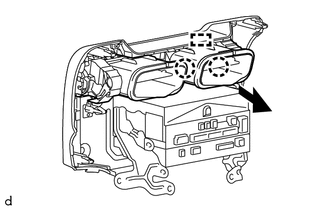

    1. Remove the 2 claws and guide to No. 3 instrument panel register assembly.
  8. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

    HINT:

    Use the same procedure as for the No. 3 instrument panel register assembly.

  9. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 5

  10. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 5 screws and No. 1 radio bracket.
      GTY865642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 RADIO BRACKET

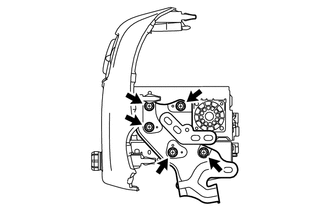

    1. Remove the 5 screws and No. 2 radio bracket.
      GTY865643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE KNOB
    GTY876095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 knob.
