  1. REMOVE NO. 1 INSTRUMENT PANEL CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 1 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 1 [08/2019 - ]

  2. REMOVE NO. 2 INSTRUMENT PANEL CLUSTER FINISH PANEL GARNISH
    1. Open the instrument cluster finish panel lid.
    2. Put protective tape around the No. 2 instrument cluster finish panel garnish.
    3. Grip the No. 2 instrument cluster finish panel garnish and pull it diagonally upward toward the rear to detach the 5 clips and remove the No. 2 instrument cluster finish panel garnish.

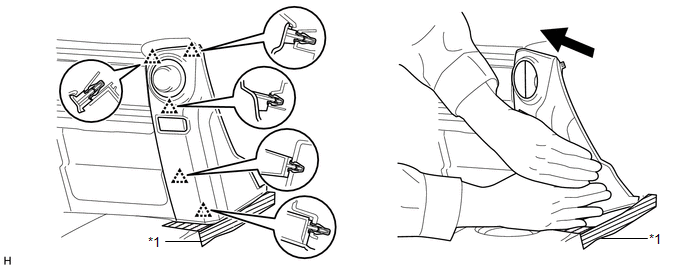

      GTY710374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape - -
  3. REMOVE HEATER CONTROL ASSEMBLY
    1. Detach the 4 clips and remove the heater control assembly.

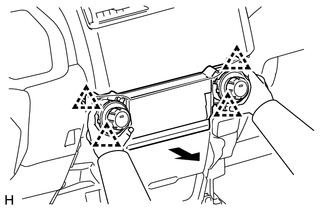

      GTY220064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
