Removal [08/2019 - ]: Procedure

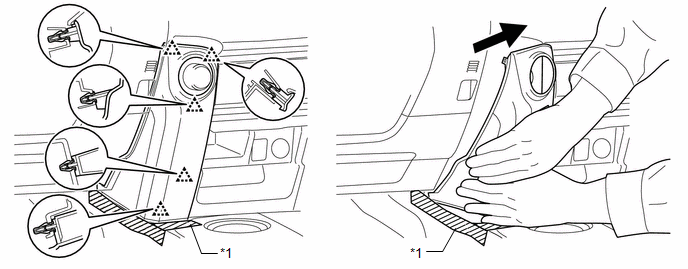

1. Put protective tape around the No. 1 instrument cluster finish panel garnish.
2. Grip the No. 1 instrument cluster finish panel garnish and pull it diagonally upward toward the rear to detach the 5 clips and remove the No. 1 instrument cluster finish panel garnish.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1

   Protective Tape

   -

   -

Refer to PROCEDURE - Step 2

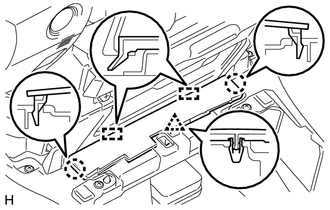

1. Detach the 2 clips and 2 guides to remove the front No. 1 console box insert.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

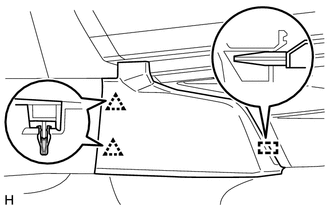

1. Detach the 2 clips and guide to remove the front No. 2 console box insert.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

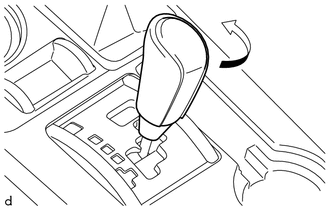

1. Turn the shift lever knob sub-assembly in the direction indicated by the arrow and remove it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Turn the shift lever knob sub-assembly in the direction indicated by the arrow and remove it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Put protective tape around the upper console panel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Protective Tape

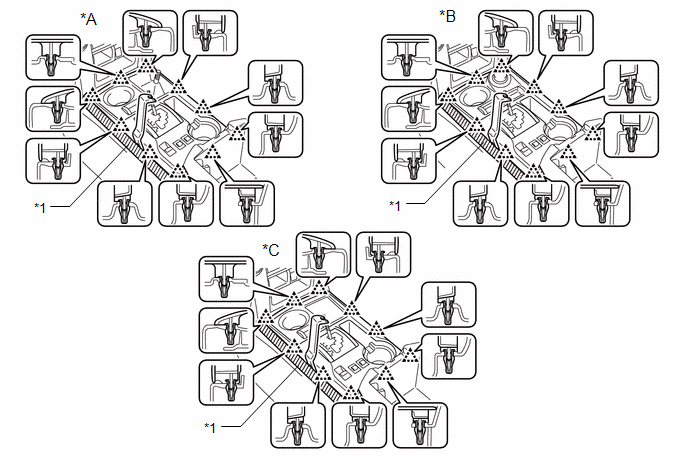

2. Using a moulding remover, detach the 10 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A	for VF2A	*B	for VF2CM, VF4BM
   *C	for 2WD	-	-
   *1	Protective Tape	-	-

3. Disconnect each connector and remove the upper console panel sub-assembly.

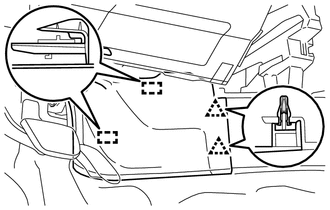

1. Detach the clip, 2 claws and 2 guides to remove the No. 2 console box retainer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

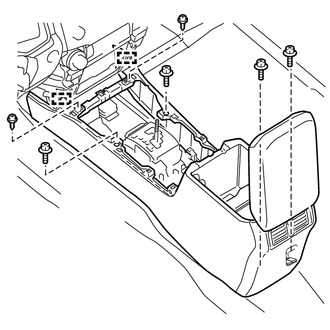

1. Remove the 4 bolts and 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Detach the 2 guides.
3. Disconnect each connector and remove the rear console box assembly.
