Removal [11/2015 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing (Refer to PRECAUTION [11/2015 - ] ).

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [11/2015 - 06/2017] , or refer to PRECAUTION [06/2017 - ] ).

  2. REMOVE FRONT PILLAR GARNISH RH

    (Refer to REMOVAL [11/2015 - 06/2017] , or refer to REMOVAL [06/2017 - ] )

  3. DISCONNECT NO. 2 INSTRUMENT PANEL WIRE
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

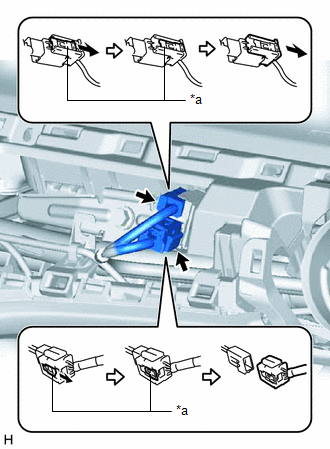

    3. Slide the 2 sliders to release the locks, and then disconnect the 2 connectors.
      GTY724884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
      TEXT IN ILLUSTRATION

      *a Slider
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

  4. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

    Refer to PROCEDURE - Step 15 , or refer to PROCEDURE - Step 15

  5. REMOVE NO. 2 HEATER TO REGISTER DUCT ASSEMBLY

    Refer to PROCEDURE - Step 5 , or refer to PROCEDURE - Step 5

  6. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
    WARNING:

    When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.

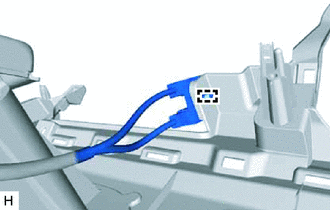

    1. Disengage the clamp from the upper instrument panel assembly.
      GTY327023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

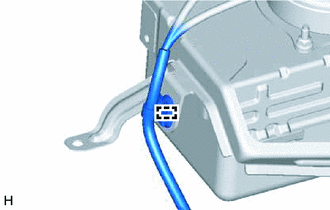

    2. Disengage the clamp to separate the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.
      GTY330068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

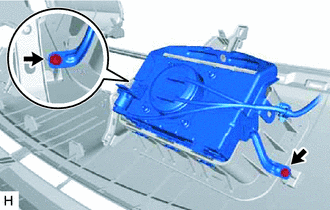

    3. Remove the 2 screws.
      GTY330059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

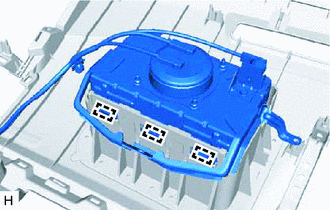

    4. Lean the upper instrument panel assembly and disengage the 3 hooks.
      GTY327021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

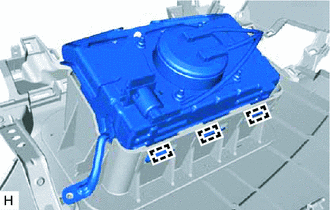

    5. Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the upper instrument panel assembly.
      GTY330060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
  7. REMOVE NO. 2 INSTRUMENT PANEL WIRE

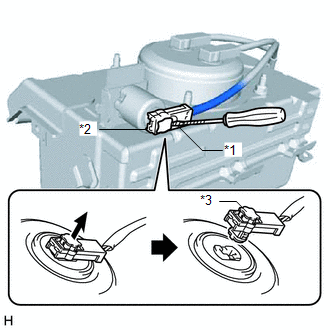

    1. Using a screwdriver with the tip wrapped with protective tape, release the vent hole connector lock.
      GTY687323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      *2 Vent Hole Connector
      *3 Vent Hole Connector Lock
    2. Disconnect the vent hole connector from the instrument panel passenger airbag assembly.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

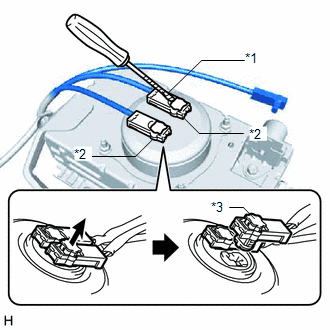

    3. Using a screwdriver with the tip wrapped with protective tape, release the 2 airbag connector locks.
      GTY698138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      *2 Airbag Connector
      *3 Airbag Connector Lock
    4. Disconnect the 2 airbag connectors to remove the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.
