Disassembly [11/2015 - 06/2017]: Procedure

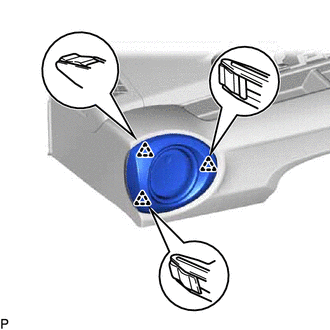

  1. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Disengage the 3 clips and remove the No. 1 instrument panel register assembly.
      GTY708497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 SIDE DEFROSTER NOZZLE
    1. Using a moulding remover, disengage the 4 claws and remove the No. 1 side defroster nozzle.
      GTY324589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 SIDE DEFROSTER NOZZLE
    1. Using a moulding remover, disengage the 4 claws and remove the No. 2 side defroster nozzle.
      GTY340877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 HEATER TO REGISTER DUCT ASSEMBLY
    1. Remove the 3 screws <B> and No. 1 heater to register duct assembly.
      GTY698673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 HEATER TO REGISTER DUCT ASSEMBLY
    1. Remove the 3 screws <B> and No. 2 heater to register duct assembly.
      GTY698692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Remove the 3 screws <B> and No. 1 side defroster nozzle duct from the No. 1 heater to register duct.
      GTY698694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Remove the 3 screws <B> and No. 2 side defroster nozzle duct from the No. 2 heater to register duct.
      GTY698698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)

    Refer to PROCEDURE - Step 3

  9. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 6

  10. REMOVE FINISH PANEL MOUNTING BRACKET
    1. Remove the 2 screws <B> and finish panel mounting bracket.
      GTY713152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH and LH sides.

  11. REMOVE NO. 1 INSTRUMENT PANEL CUSHION
    1. Remove the 4 No. 1 instrument panel cushions.
      GTY698696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 INSTRUMENT PANEL CUSHION
    1. Remove the No. 2 instrument panel cushion.
      GTY698691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE INSTRUMENT PANEL CUSHION
    1. Remove the instrument panel cushion.
      GTY771490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the instrument panel cushion.
      GTY753992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 5 INSTRUMENT PANEL CUSHION
    1. Remove the No. 5 instrument panel cushion.
      GTY753993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
