Removal [11/2015 - ]: Procedure

  1. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

    (Refer to REMOVAL [11/2015 - 06/2017] , or Refer to REMOVAL [06/2017 - ] )

  2. REMOVE NO. 1 HEATER TO REGISTER DUCT ASSEMBLY

    Refer to PROCEDURE - Step 4 , or Refer to PROCEDURE - Step 4

  3. REMOVE NAVIGATION ANTENNA ASSEMBLY

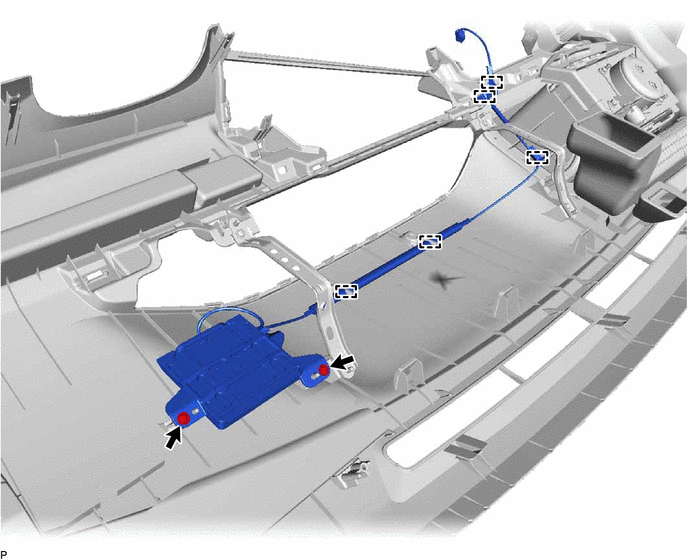

    1. Remove the 2 screws.
      GTY331578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clamps and remove the navigation antenna assembly.
