Removal [11/2015 - ]: Procedure

  1. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE AIR CLEANER CASE SUB-ASSEMBLY
    1. Remove the air cleaner filter element sub-assembly.
    2. Remove the 2 bolts, grommet and air cleaner case sub-assembly.

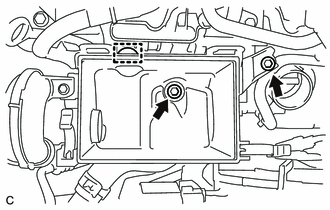

      GTY339678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
  3. REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR
    1. Disconnect the connector.

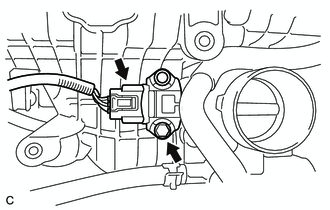

      GTY339677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    2. Remove the bolt and manifold absolute pressure sensor.
