Reassembly [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL NO. 1 INSTRUMENT PANEL PIN
    1. Install the 2 No. 1 instrument panel pins with the 2 screws <D>.
      GTY423733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 SIDE DEFROSTER NOZZLE
    1. Engage the 2 claws to install the No. 2 side defroster nozzle.
      GTY423774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 SIDE DEFROSTER NOZZLE
    1. Engage the 2 claws to install the No. 1 side defroster nozzle.
      GTY423775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INSTRUMENT PANEL CUSHION
    1. Install a new instrument panel cushion as shown in the illustration.
      GTY442637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Outline - -

      HINT:

      Install the ends of the instrument panel cushion so that they are within the standard dimension (A) shown in the illustration.

      STANDARD DIMENSION

      Area Dimension
      A 0 to 10 mm (0 to 0.394 in.)
  5. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH
    1. Engage the 4 guides, 4 claws and 2 clips to install the No. 1 defroster nozzle garnish.
      GTY450381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

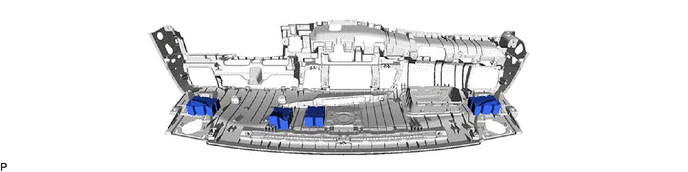

  6. INSTALL NO. 3 INSTRUMENT PANEL CUSHION
    1. Using hot-melt glue, install 4 new No. 3 instrument panel cushions.
      GTY450382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 4 INSTRUMENT PANEL CUSHION
    1. Using hot-melt glue, install a new No. 4 instrument panel cushion.
      GTY423773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 2 INSTRUMENT PANEL SPACER
    1. Using hot-melt glue, install a new No. 2 instrument panel spacer.
      GTY423732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 1 INSTRUMENT PANEL SPACER
    1. Using hot-melt glue, install a new No. 1 instrument panel spacer.
      GTY423731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 4 INSTRUMENT PANEL WIRE
    1. Engage the 12 clamps to install the No. 4 instrument panel wire.
      GTY423730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL AUTOMATIC LIGHT CONTROL SENSOR

    Refer to PROCEDURE - Step 1

  12. INSTALL CENTER HEATER TO REGISTER SUB DUCT
    1. Install the center heater to register sub duct with the 2 screws <D>.
      GTY423718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 2

  14. INSTALL NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)

    Refer to PROCEDURE - Step 1

  15. INSTALL ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  16. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Install the defroster nozzle assembly with the 3 screws <D>.
      GTY423719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Engage the 2 claws.
      GTY423720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 side defroster nozzle duct with the screw <D>.
  18. INSTALL NO. 4 HEATER TO REGISTER DUCT
    1. Install the No. 4 heater to register duct with the 3 screws <D>.
      GTY423725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Engage the 2 claws.
      GTY450380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 1 side defroster nozzle duct with the screw <D>.
  20. INSTALL NO. 1 HEATER TO REGISTER DUCT
    1. Install the No. 1 heater to register duct with the 3 screws <D>.
      GTY423726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
