Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
Refer to REMOVAL [12/2013 - 11/2016]

Refer to REMOVAL [11/2016 - ]
REMOVE IGNITION COIL ASSEMBLY
Refer to PROCEDURE - Step 2
REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 19
REMOVE CRANKSHAFT POSITION SENSOR
Refer to PROCEDURE - Step 2
REMOVE CRANKSHAFT PULLEY
Refer to PROCEDURE - Step 18

REMOVE ENGINE MOUNTING BRACKET RH

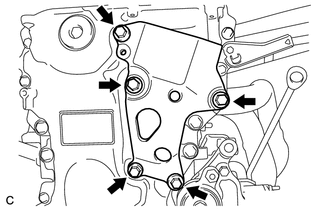

Remove the 5 bolts and engine mounting bracket RH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
Refer to PROCEDURE - Step 14

REMOVE TIMING CHAIN COVER SUB-ASSEMBLY

Remove the 17 bolts and 2 nuts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

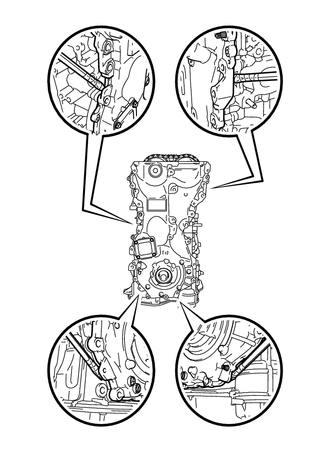

Remove the timing chain cover sub-assembly by prying between the timing chain cover sub-assembly and cylinder head sub-assembly, camshaft housing sub-assembly, cylinder block and stiffening crankcase assembly with a screwdriver as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be careful not to damage the contact surfaces of the cylinder head sub-assembly, camshaft housing sub-assembly, cylinder block, stiffening crankcase assembly or timing chain cover sub-assembly.

HINT:

Tape the screwdriver tip before use.

Remove the 2 oil pump gaskets and oil hole cover gasket from the stiffening crankcase assembly.

REMOVE TIMING CHAIN COVER OIL SEAL

Using a screwdriver and wooden block, pry out the timing chain cover oil seal.

*a	Wooden Block

NOTE:

Do not damage the surface of the timing chain cover oil seal press fit hole.

HINT:

Tape the screwdriver tip before use.
