Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 14 , or refer to PROCEDURE - Step 14

  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

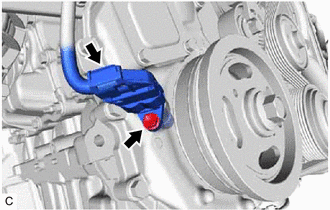

      GTY437744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor from the timing chain cover sub-assembly.
      NOTE:

      If the crankshaft position sensor has been struck or dropped, replace it.
