Installation [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT AND ADJUST BRAKE PEDAL HEIGHT

    Refer to ADJUSTMENT [02/2014 - ]

  2. INSTALL BRAKE PEDAL STROKE SENSOR ASSEMBLY
    NOTE:
    • Do not drop the brake pedal stroke sensor assembly.
    • If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.
    1. When installing a new brake pedal stroke sensor assembly:
      NOTE:

      Do not break the brake pedal stroke sensor assembly lever set pin before installing the brake pedal stroke sensor assembly with the 2 nuts.

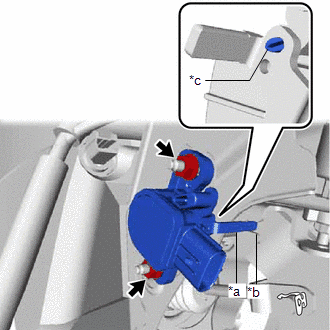

      1. Install a new brake pedal stroke sensor assembly to the brake pedal support assembly with the 2 nuts.

        Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

        NOTE:
        • Engage the brake pedal stroke sensor assembly lever with the brake pedal groove.
        • Check that there is no foreign matter attached to the contact surface of the brake pedal stroke sensor assembly.
        • Check that the tip of the brake pedal stroke sensor assembly lever is protruding from the brake pedal groove.
        GTY450078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Brake Pedal Stroke Sensor Assembly Lever
        *b Brake Pedal Groove
        *c Brake Pedal Stroke Sensor Assembly Lever Set Pin
      2. Connect the connector.
      3. Firmly depress the brake pedal to break the brake pedal stroke sensor assembly lever set pin.
      4. Remove the broken lever set pin.
    2. When reusing the brake pedal stroke sensor assembly:

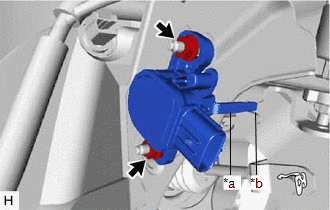

      1. Install the brake pedal stroke sensor assembly to the brake pedal support assembly and temporarily tighten the 2 nuts.
        NOTE:
        • Engage the brake pedal stroke sensor assembly lever with the brake pedal groove.
        • Check that there is no foreign matter attached to the contact surface of the brake pedal stroke sensor assembly.
        • Check that the tip of the brake pedal stroke sensor assembly lever is protruding from the brake pedal groove.
        GTY445691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Brake Pedal Stroke Sensor Assembly Lever
        *b Brake Pedal Groove
      2. Connect the connector.
  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4 , or refer to PROCEDURE - Step 4

  4. ADJUST BRAKE PEDAL STROKE SENSOR ASSEMBLY
    NOTE:

    When the brake pedal stroke sensor assembly is being reused, perform the following procedure to adjust it.

    1. Connect the Techstream to the DLC3 with the power switch off.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Chassis / ABS/VSC/TRAC / Data List / Stroke Sensor.

      Chassis > ABS/VSC/TRAC > Data List

      Tester Display
      Stroke Sensor

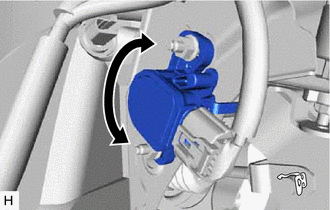

    5. Read the stroke sensor value in the Data List, and turn the brake pedal stroke sensor assembly slowly to the right or left to adjust the output voltage so that it is within the following range.
      GTY435010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage (without the brake pedal depressed)

      0.8 to 1.2 V

    6. Tighten the 2 nuts.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:

      Do not depress the brake pedal after turning the power switch on (IG).

    7. Turn the Techstream off and turn the power switch off.
    8. Disconnect the Techstream from the DLC3.
  5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  6. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33

  7. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 34

  8. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 35

  9. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 54 , or refer to PROCEDURE - Step 55 , or refer to PROCEDURE - Step 53

  10. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 55 , or refer to PROCEDURE - Step 56 , or refer to PROCEDURE - Step 54

  11. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 56 , or refer to PROCEDURE - Step 57 , or refer to PROCEDURE - Step 55

  12. PERFORM INITIALIZATION AND CALIBRATION OF LINEAR SOLENOID VALVE

    Refer to INITIALIZATION [02/2014 - 11/2016] , or refer to INITIALIZATION [11/2016 - ]

  13. CHECK AND CLEAR DTC

    Refer to DTC CHECK / CLEAR [02/2014 - ]
