Replacement [08/2019 - ]: Procedure

WARNING: This page is about a different car, the 2024 Toyota 4Runner, 2023 Toyota 4Runner, 2022 Toyota 4Runner, 2021 Toyota 4Runner, and 2020 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN TRANSFER OIL
See step 1
SUPPORT TRANSMISSION ASSEMBLY
Refer to PROCEDURE - Step 21
REMOVE NO. 3 FRAME CROSSMEMBER SUB-ASSEMBLY
Refer to PROCEDURE - Step 23
REMOVE TRANSFER CASE LOWER PROTECTOR
Refer to PROCEDURE - Step 10
REMOVE FRONT PROPELLER SHAFT ASSEMBLY
Refer to REMOVAL [08/2015 - ]
REMOVE FRONT OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY
Refer to PROCEDURE - Step 6

REMOVE TRANSFER CASE OIL SEAL

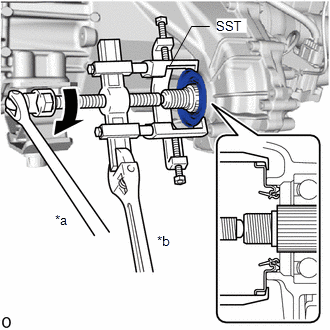

Using SST, remove the transfer case oil seal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09950-40011
1. 09951-04020
2. 09952-04010
3. 09953-04030
4. 09954-04010
5. 09955-04031
6. 09957-04010
7. 09958-04011

TEXT IN ILLUSTRATION

*a	Turn
*b	Hold

NOTE:

Apply a lubricant to the threads and end of SST.

INSTALL TRANSFER CASE OIL SEAL

Coat the lip of a new transfer case oil seal with MP grease.

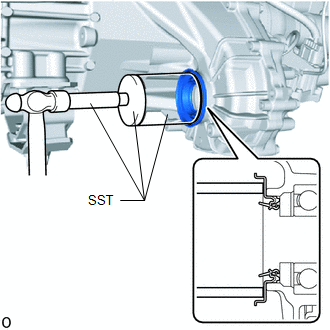

Using SST and a hammer, install the transfer case oil seal until its metal ring contacts the case.

SST: 09710-30041
1. 09710-03221
SST: 09950-60011
1. 09951-00600
2. 09951-00650
3. 09952-06010
SST: 09950-70010
1. 09951-07150

INSTALL FRONT OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY
Refer to PROCEDURE - Step 55
INSTALL FRONT PROPELLER SHAFT ASSEMBLY
Refer to INSTALLATION [08/2015 - ]
INSTALL TRANSFER CASE LOWER PROTECTOR
Refer to PROCEDURE - Step 20
INSTALL NO. 3 FRAME CROSSMEMBER SUB-ASSEMBLY
Refer to PROCEDURE - Step 8
ADD TRANSFER OIL
See step 2
CHECK FOR TRANSFER OIL LEAK
