Removal [10/2014 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing (Refer to PRECAUTION [10/2014 - 10/2015] or PRECAUTION [10/2015 - ] ).

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] or INITIALIZATION [10/2015 - ] ).

  4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 1 and PROCEDURE - Step 1

  5. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 4 and PROCEDURE - Step 4

  6. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 5 and PROCEDURE - Step 5

  7. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 11

  8. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 12

  9. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  10. REMOVE LOWER NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  11. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
    WARNING:

    When storing the lower No. 1 instrument panel airbag assembly, keep the airbag deployment side facing upward.

    1. Check that the power switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

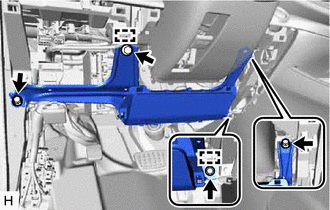

    3. Remove the 4 bolts.
      GTY372216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 hooks to separate the lower No. 1 instrument panel airbag assembly.
      NOTE:

      When removing the lower No. 1 instrument panel airbag assembly, do not pull the airbag wire harness.

    5. Disengage the 2 claws to disconnect the DLC3.
      GTY586404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

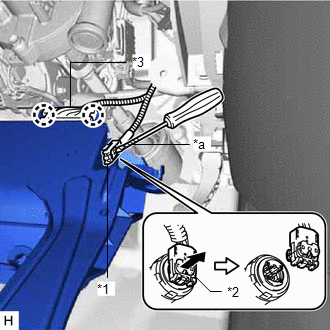

    6. Using a screwdriver with its tip wrapped with protective tape, release the airbag connector lock.
      TEXT IN ILLUSTRATION

      *1 Airbag Connector
      *2 Airbag Connector Lock
      *3 DLC3
      *a Protective Tape
    7. Disconnect the airbag connector to remove the lower No. 1 instrument panel airbag assembly.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.
