Removal [10/2015 - ]: Procedure

  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
    1. Using a moulding remover, disengage the 5 clips as shown in the illustration.
      GTY378424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the lower center instrument panel finish panel.
      GTY383986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT UPPER CONSOLE PANEL GARNISH
    1. Open the console box door.
      GTY378420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 7 clips and remove the front upper console panel garnish.
      GTY598731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Illumination:
      1. Disconnect the 2 connectors.
  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Turn the shift lever knob sub-assembly counterclockwise and remove it.
      GTY378407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Move the shift lever to N.
    2. Disengage the 7 clips as shown in the illustration.
      GTY590435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and remove the rear upper console panel sub-assembly.
  5. REMOVE CONSOLE BOX POCKET
    1. Remove the console box pocket.
      GTY544075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CONSOLE BOX CARPET
    1. Remove the console box carpet.
      GTY544077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

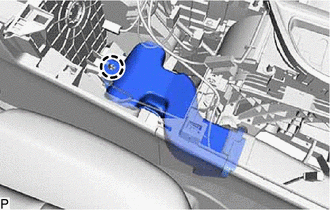

  7. REMOVE NO. 4 CONSOLE BOX DUCT
    1. Disengage the claw and remove the No. 4 console box duct.
      GTY598730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. Disengage the 2 clamps.
      GTY544079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 screws.
      GTY544073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector.
    4. Pull the rear console box assembly in the direction indicated by the arrow to disengage the 4 guides and remove the rear console box assembly.
      GTY378737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
