Removal [10/2014 - ]: Procedure
- REMOVE FRONT WHEEL RH
- REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
- REMOVE ENGINE UNDER COVER RH
- REMOVE FRONT FENDER APRON SEAL RH
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
See step 18
- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1 and PROCEDURE - Step 1
- REMOVE INLET AIR CLEANER ASSEMBLY
See step 23
- REMOVE AIR CLEANER CAP SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
See step 25
- REMOVE AIR CLEANER CASE SUB-ASSEMBLY
See step 26
- REMOVE NO. 2 ENGINE MOUNTING STAY RH
See step 52
- DISCONNECT EARTH WIRE
See step 53
- REMOVE ENGINE MOVING CONTROL ROD BRACKET
See step 54

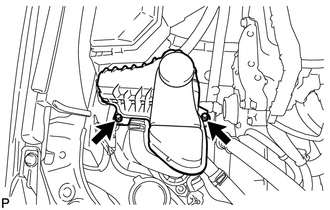

- SEPARATE INVERTER RESERVE TANK ASSEMBLY

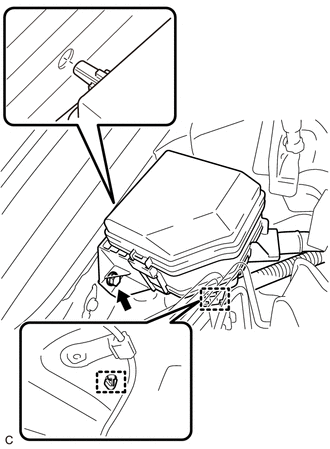

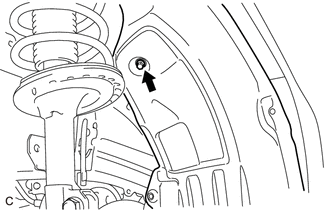

- SEPARATE NO. 2 ENGINE ROOM RELAY BLOCK

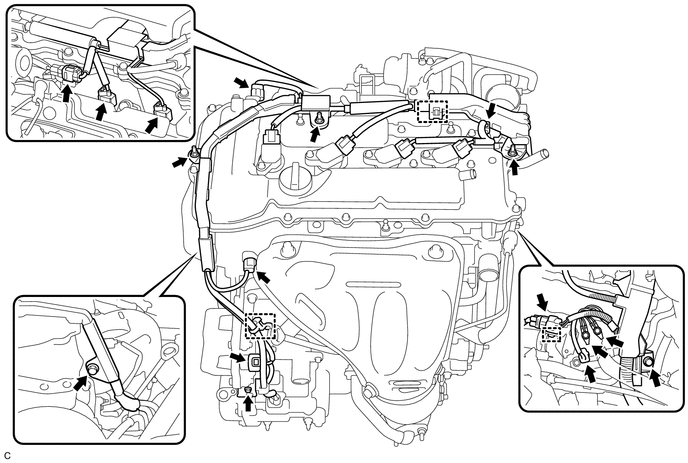

- DISCONNECT ENGINE WIRE
- REMOVE IGNITION COIL ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
See step 15
- SET NO. 1 CYLINDER TO TDC/COMPRESSION

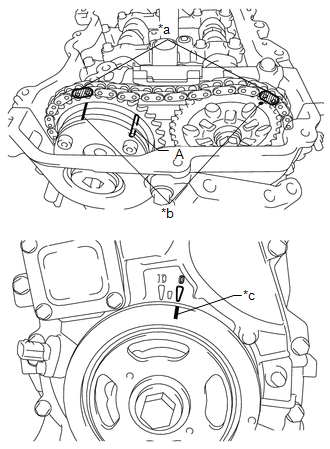

- Turn the crankshaft pulley until its timing notch (groove) and the timing mark "0" of the timing chain cover sub-assembly are aligned.TEXT IN ILLUSTRATION
*a Paint Mark *b Timing Mark *c Timing Notch - Check that both timing marks on the camshaft timing gear assembly and camshaft timing sprocket are facing upward as shown in the illustration. If not, turn the crankshaft 1 revolution (360°) to align the timing marks as shown in the illustration.
HINT:
"A" is not a timing mark.
- Place paint marks on the chain sub-assembly in alignment with the timing marks on the camshaft timing gear assembly and camshaft timing sprocket.
- Turn the crankshaft pulley until its timing notch (groove) and the timing mark "0" of the timing chain cover sub-assembly are aligned.
- REMOVE TIMING CHAIN COVER PLATE
- REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY

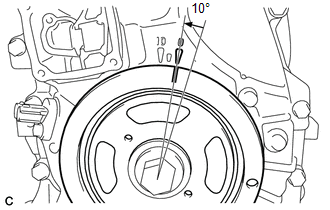

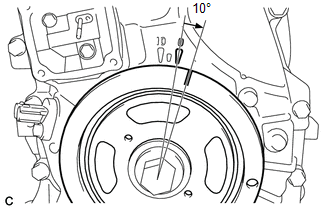

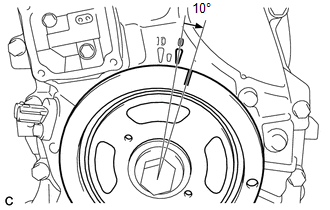

- Turn the crankshaft pulley approximately 10° clockwise.
- Turn the crankshaft pulley approximately 10° counterclockwise.

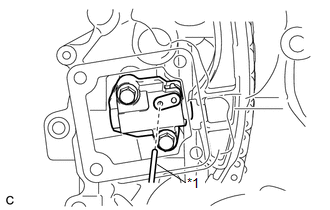

- Align the holes of the stopper plate and No. 1 chain tensioner assembly, and insert a pin into the stopper plate hole to lock the No. 1 chain tensioner assembly.TEXT IN ILLUSTRATION
*1 Pin - Turn the crankshaft pulley approximately 10° clockwise.

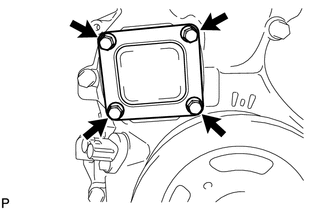

- Remove the 2 bolts, No. 1 chain tensioner assembly and gasket.NOTE:
Make sure not to drop the gasket inside the timing chain cover sub-assembly.
- Turn the crankshaft pulley approximately 10° counterclockwise.
- Turn the crankshaft pulley approximately 10° clockwise.
- REMOVE TIMING CHAIN GUIDE
See step 15
- REMOVE OIL PUMP RELIEF VALVE PLUG
See step 20
- REMOVE CAMSHAFT TIMING GEAR ASSEMBLY

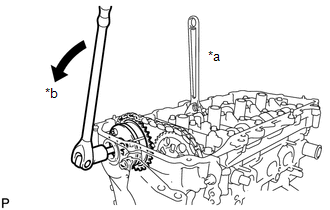

- Hold the hexagonal portion of the camshaft with a wrench and remove the bolt from the camshaft.TEXT IN ILLUSTRATION
*a Hold *b Turn NOTE:Be careful not to damage the cylinder head sub-assembly or spark plug tube with the wrench.
- Separate the camshaft timing gear assembly from the camshaft.

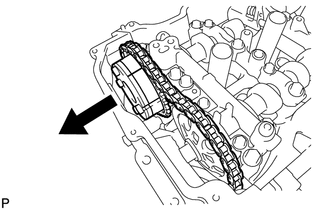

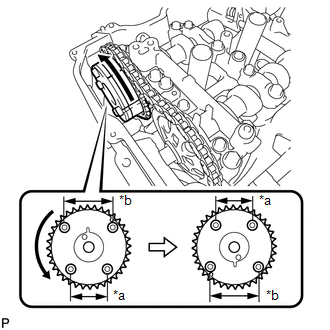

- Remove the chain sub-assembly from the camshaft timing gear assembly, and turn the camshaft timing gear assembly approximately 180°.TEXT IN ILLUSTRATION

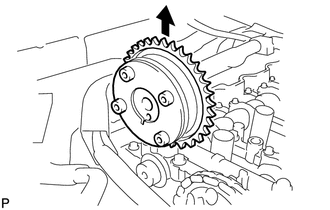

*a Narrow *b Wide - Remove the camshaft timing gear assembly.NOTE:
Do not disassemble the camshaft timing gear assembly.

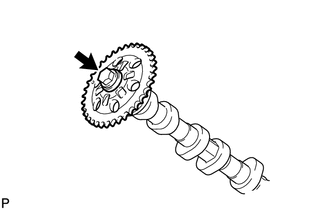

- Hold the hexagonal portion of the camshaft with a wrench and remove the bolt from the camshaft.
- REMOVE CAMSHAFT BEARING CAP

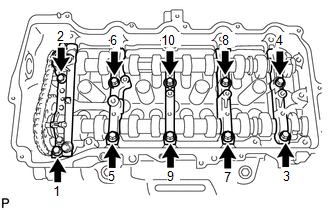

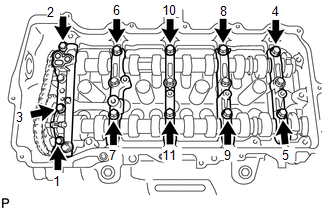

- Using several steps, remove the 11 bolts in the sequence shown in the illustration.
- Using several steps, remove the 10 bolts in the sequence shown in the illustration.
- Remove the No. 1 camshaft bearing cap, No. 2 camshaft bearing cap and 3 No. 3 camshaft bearing caps.
HINT:
Arrange the removed parts in the correct order.

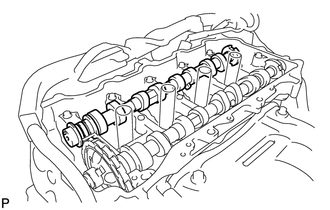

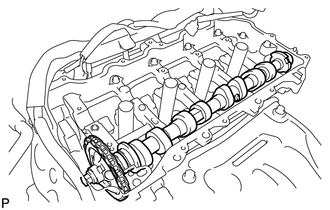

- REMOVE CAMSHAFT
- REMOVE NO. 2 CAMSHAFT
- REMOVE CAMSHAFT TIMING SPROCKET
- REMOVE OIL CONTROL VALVE FILTER
See step 34
- REMOVE NO. 1 CAMSHAFT BEARING
See step 36
- REMOVE NO. 2 CAMSHAFT BEARING
See step 37
