Removal [10/2014 - 10/2015]: Procedure

  1. REMOVE SHIFT LEVER SUPPORT

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 11

  3. REMOVE FLOOR CARPET BRACKET RH

    Refer to PROCEDURE - Step 37

  4. REMOVE AIRBAG ECU ASSEMBLY

    Refer to PROCEDURE - Step 15

  5. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE POWER MANAGEMENT CONTROL ECU

    Refer to PROCEDURE - Step 2

  7. LOOSEN ADJUSTING NUT
    1. Remove the lock nut and loosen the adjusting nut.
      GTY606169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Nut
      *2 Adjusting Nut
      NOTE:

      If the lock nut is removed or loosened, replace the lock nut with a new one.

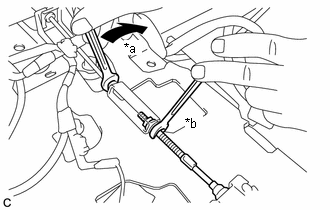

  8. SEPARATE NO. 4 PARKING BRAKE CABLE ASSEMBLY
    1. Separate the No. 4 parking brake cable assembly from the parking brake control pedal assembly as shown in the illustration.
      GTY598908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Turn
      *b Hold
  9. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY
    1. Turn back the floor carpet.
    2. Remove the clip from the No. 1 parking brake cable assembly.
      GTY373752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and 2 nuts, and separate the No. 1 parking brake cable assembly.
    4. Disconnect the parking brake switch assembly connector.
      GTY317253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt, 2 nuts and parking brake control pedal assembly.
      GTY317248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
