Installation [10/2014 - 10/2015]: Procedure

  1. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY
    1. Install the parking brake control pedal assembly with the bolt and 2 nuts.
      Fig 1: Parking Brake Control Pedal Assembly Tightening Sequence
      GTY549277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      NOTE:

      Tighten the bolt and 2 nuts in the order shown in the illustration.

    2. Connect the parking brake switch assembly connector.
    3. Install the No. 1 parking brake cable assembly with the bolt and 2 nuts.

      Bolt

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      Nut

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    4. Install the clip to the No. 1 parking brake cable assembly.
    5. Install the floor carpet.
  2. CONNECT NO. 4 PARKING BRAKE CABLE ASSEMBLY

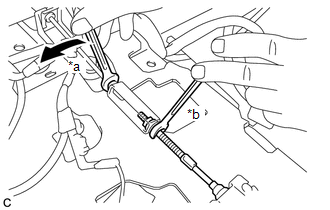

    1. Connect the No. 4 parking brake cable assembly to the parking brake control pedal assembly as shown in the illustration.
      GTY553742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Turn
      *b Hold

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  3. INSTALL POWER MANAGEMENT CONTROL ECU

    Refer to PROCEDURE - Step 1

  4. INSTALL NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. INSTALL AIRBAG ECU ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. INSTALL FLOOR CARPET BRACKET RH

    Refer to PROCEDURE - Step 13

  7. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. INSTALL SHIFT LEVER SUPPORT

    (Refer to INSTALLATION [10/2014 - ] )

  9. ADJUST PARKING BRAKE PEDAL TRAVEL

    Refer to PROCEDURE - Step 2

  10. INSPECT BRAKE WARNING LIGHT

    Refer to PROCEDURE - Step 3
