Installation [10/2014 - 10/2015]: Procedure

  1. INSTALL POWER MANAGEMENT CONTROL ECU

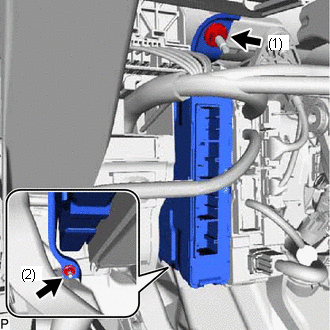

    1. Install the power management control ECU with the 2 nuts in the order shown in the illustration.
      GTY548002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    2. Connect each connector.
  2. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    (Refer to INSTALLATION [10/2014 - ] )
