Installation [10/2014 - ]: Procedure

  1. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
    1. Check that the power switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Connect the airbag connector to the lower No. 1 instrument panel airbag assembly.

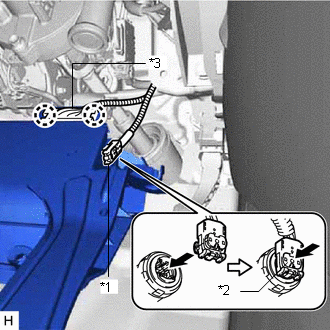

      GTY546682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Airbag Connector
      *2 Airbag Connector Lock
      *3 DLC3
      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

    4. Push in the airbag connector lock to install the airbag connector.
    5. Engage the 2 claws to connect the DLC3.
    6. Engage the 2 hooks to temporarily install the lower No. 1 instrument panel airbag assembly.
    7. Install the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Confirm that the lower No. 1 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward.

  2. INSTALL LOWER NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35

  3. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 36

  4. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 37

  5. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 33 . Refer to PROCEDURE - Step 35

  6. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 34 . Refer to PROCEDURE - Step 36

  7. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 35 . Refer to PROCEDURE - Step 37

  8. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 8 and PROCEDURE - Step 8

  9. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] or INITIALIZATION [10/2015 - ] ).

  10. INSTALL LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 3

  11. PERFORM DIAGNOSTIC SYSTEM CHECK

    (Refer to DTC CHECK / CLEAR [10/2014 - ] )

  12. INSPECT SRS WARNING LIGHT

    (Refer to DIAGNOSIS SYSTEM [10/2014 - ] )
