Installation [10/2014 - ]: Procedure

  1. INSTALL BRAKE BOOSTER PUMP ASSEMBLY
    1. Insert the stud of the brake booster pump assembly to the hole of the brake actuator bracket assembly, and insert the 2 pins of the brake actuator bracket assembly into the 2 brake booster pump bushings*5.

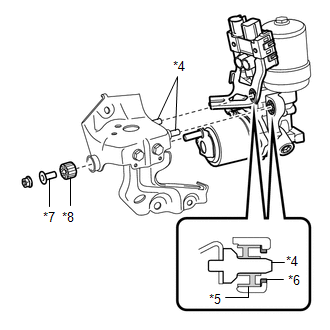

      GTY556170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Union
      *2 Stud
      *3 Connector Box and Wire Harness
      *4 Pin
      *5 Brake Booster Pump Bushing
      *6 Brake Booster Pump Collar
      *7 Brake Actuator Case Collar
      *8 Brake Booster Pump Bushing
      NOTE:
      • Do not carry the brake booster pump assembly by the parts shown in bold (*1, *2 and *3) in the illustration.
      • Do not drop the brake booster pump assembly when carrying it.
      • Be careful not to allow any brake fluid to enter the connector.
      • When installing the brake booster pump assembly to the brake actuator bracket assembly, confirm that the 2 brake booster pump collars*6 and 2 brake booster pump bushings*5 are installed on the brake booster pump assembly.
      • Do not remove the hole plugs before installing a new brake booster pump assembly because the brake booster pump assembly is filled with brake fluid.

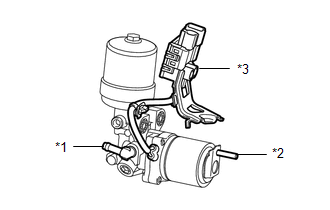

      GTY603037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the brake actuator case collar*7, brake booster pump bushing*8 and brake booster pump assembly to the brake actuator bracket assembly with the nut.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Engage the wire harness clamp to the brake actuator bracket assembly.
  2. INSTALL NO. 2 BRAKE ACTUATOR HOSE
    1. Install the No. 2 brake actuator hose to the brake booster pump assembly with the hose clamp.
      GTY377672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Up
      NOTE:
      • Match the identification mark of the No. 2 brake actuator hose and the rib of the brake booster pump assembly.
      • Install the hose clamp within the range shown in the illustration.
  3. INSTALL BRAKE BOOSTER PUMP ASSEMBLY WITH BRACKET
    1. Engage the claw to temporarily install the brake booster pump assembly with bracket to the vehicle body.
      Fig 1: Brake Booster Pump Assembly With Bracket Tightening Sequence

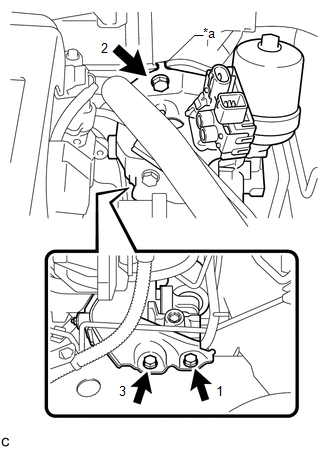

      GTY579117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Claw
      NOTE:

      Do not kink or damage the brake line, suction hose sub-assembly or air conditioner tube and accessory assembly.

    2. Install the brake booster pump assembly with bracket with the 3 bolts.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

      NOTE:

      Tighten the 3 bolts in the order shown in the illustration.

    3. Engage the claw to temporarily install the connector box to the brake actuator bracket assembly.

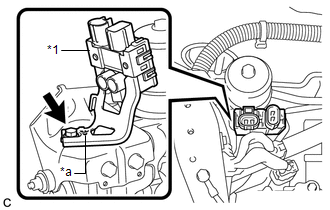

      GTY539757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Connector Box
      *a Claw
    4. Install the connector box with the bolt.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    5. Connect the 2 connectors to the brake booster pump assembly.
  4. CONNECT FRONT NO. 1 BRAKE TUBE
    1. Using a union nut wrench, connect the front No. 1 brake tube to the brake booster pump assembly.

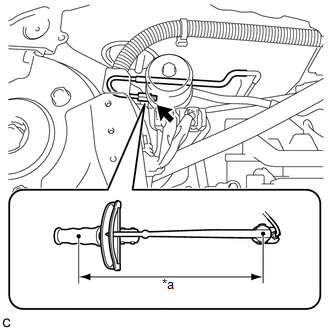

      GTY480600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Torque Wrench Fulcrum Length

      Specified tightening torque

      Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench (Refer to PRECAUTION [10/2014 - ] ).
      • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 250 mm (9.84 in.)):

        14 N*m (142 kgf*cm, 10 ft.*lbf)

  5. CONNECT NO. 2 BRAKE ACTUATOR HOSE
    1. Connect the No. 2 brake actuator hose to the No. 1 brake actuator tube with the hose clamp.

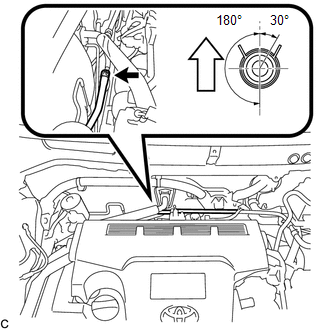

      GTY378141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Up
      NOTE:
      • Match the identification mark of the No. 2 brake actuator hose and the identification mark of the No. 1 brake actuator tube.
      • Install the hose clamp within the range shown in the illustration.
  6. BLEED NO. 1 BRAKE ACTUATOR TUBE

    See step  6

  7. INSTALL NO. 1 BRAKE ACTUATOR TUBE

    See step  7

  8. INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

    See step  8

  9. INSTALL SUCTION HOSE SUB-ASSEMBLY
    1. Remove the vinyl tape from the openings of the disconnected parts.
    2. Sufficiently apply compressor oil to a new O-ring, the fitting surface of the suction hose sub-assembly and air conditioning unit.

      Compressor Oil

      ND-OIL 11 or equivalent

      NOTE:

      Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.

    3. Install the O-ring to the suction hose sub-assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surfaces free from dirt or any foreign matter.

    4. Insert the suction hose sub-assembly into the air conditioning unit.
      GTY317448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Insert the pipe joint into the fitting hole securely.
      • Do not deform the piping.
      • Do not damage the clamp.
  10. INSTALL AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY
    1. Remove the vinyl tape from the openings of the disconnected parts.
    2. Sufficiently apply compressor oil to a new O-ring, the fitting surface of the air conditioner tube and accessory assembly and air conditioning unit.

      Compressor Oil

      ND-OIL 11 or equivalent

      NOTE:

      Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.

    3. Install the O-ring to the air conditioner tube and accessory assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surface free from dirt or any foreign matter.

    4. Insert the air conditioner tube and accessory assembly into the air conditioning unit.
      GTY317436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Insert the pipe joint into the fitting hole securely.

    5. Turn the hook connector and install the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  11. FILL RESERVOIR WITH BRAKE FLUID
  12. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    (Refer to PROCEDURE - Step 2 )

  13. BLEED BRAKE SYSTEM

    See step  2

  14. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 62

  15. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 63

  16. INSTALL AIR CLEANER CAP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  17. INSTALL INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 65

  18. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 3 and PROCEDURE - Step 3

  19. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 2

  20. WARM UP COMPRESSOR

    Refer to PROCEDURE - Step 3

  21. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 4

  22. INSTALL FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY

    See step  18

  23. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    (Refer to PROCEDURE - Step 2 )
