Disassembly [10/2014 - ]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).
- REMOVE LUGGAGE TRIM SERVICE HOLE COVER
Refer to PROCEDURE - Step 2
- DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
- REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
- REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)
- Put protective tape around the front door trim board sub-assembly.TEXT IN ILLUSTRATION
Protective Tape - Using a moulding remover, disengage the clip, 9 claws and 2 guides.
- Using a screwdriver, disengage the 2 clips and guide.TEXT IN ILLUSTRATION
Protective Tape HINT:
Tape the screwdriver tip before use.
- w/ illumination:
- Disconnect each connector to remove the multiplex network master switch assembly with front door armrest base panel.
- Put protective tape around the front door trim board sub-assembly.
- REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
- Put protective tape around the front door trim board sub-assembly.TEXT IN ILLUSTRATION
Protective Tape - Using a moulding remover, disengage the clip, 10 claws and 2 guides.
- Using a screwdriver, disengage the 2 clips and guide.TEXT IN ILLUSTRATION
Protective Tape HINT:
Tape the screwdriver tip before use.
- w/ illumination:
- Disconnect each connector to remove the power window regulator switch assembly with front door armrest base panel.
- Put protective tape around the front door trim board sub-assembly.
- REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION
- REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
- Put protective tape around the front door panel.TEXT IN ILLUSTRATION

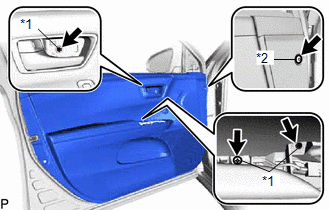

Protective Tape - Remove the clip and 3 screws.TEXT IN ILLUSTRATION
*1 Screw *2 Clip - Using a clip remover, disengage the 9 clips.
- Disconnect the front door lock remote control cable assembly and front door inside locking cable assembly.
- Disconnect each connector to remove the front door trim board sub-assembly.
- Put protective tape around the front door panel.
- REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
- REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP
- REMOVE SEAT MEMORY SWITCH (w/ Memory)
Refer to PROCEDURE - Step 2
- REMOVE DOOR SIDE AIRBAG SENSOR
Refer to PROCEDURE - Step 11
- REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 8
- REMOVE OUTER REAR VIEW MIRROR ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY (w/ Memory)
Refer to PROCEDURE - Step 7
- REMOVE FRONT DOOR TRIM BRACKET
- REMOVE FRONT DOOR SERVICE HOLE COVER
- REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
- Remove the grommet.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Connect the multiplex network master switch assembly and move the front door glass sub-assembly so that the door glass bolts can be seen.
- Disconnect the cable from the negative (-) auxiliary battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- Disconnect the multiplex network master switch assembly.
- Remove the 2 bolts.NOTE:
After the bolts are removed, do not allow the front door glass sub-assembly to fall.
- Remove the front door glass sub-assembly as indicated by the arrows, in the order shown in the illustration.NOTE:
Do not damage the front door glass sub-assembly.
- Remove the grommet.
- REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY
- Loosen the temporary bolt.TEXT IN ILLUSTRATION
*1 Temporary Bolt NOTE:Do not remove the temporary bolt. If the temporary bolt is removed, the front door window regulator may fall and cause damage.
- Remove the 5 bolts.
- Remove the front door window regulator assembly.
- Remove the temporary bolt from the front door window regulator assembly.
- Loosen the temporary bolt.
- REMOVE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY
- REMOVE NO. 2 FRONT DOOR STIFFENER CUSHION
- REMOVE FRONT DOOR GLASS RUN
- REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY
- REMOVE FRONT DOOR OUTSIDE HANDLE COVER WITH LOCK CYLINDER ASSEMBLY (for Driver Side)
- REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Driver Side)
- REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)
- REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY
- REMOVE FRONT DOOR FRONT OUTSIDE HANDLE PAD
- REMOVE FRONT DOOR REAR OUTSIDE HANDLE PAD

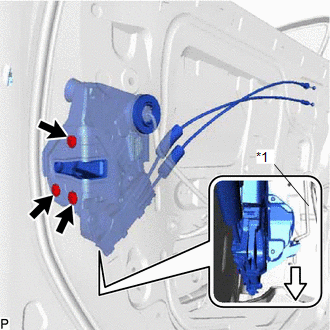

- REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY
- REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY
- REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY
- REMOVE FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
- REMOVE FRONT SMART DOOR WIRE (w/ Smart Key System)
- REMOVE FRONT DOOR LOCK OPEN ROD
- REMOVE FRONT DOOR CHECK ASSEMBLY
- REMOVE FRONT DOOR WEATHERSTRIP
- REMOVE DOOR FRAME GARNISH
- REMOVE FRONT DOOR NO. 2 WEATHERSTRIP
- REMOVE FRONT DOOR BELT MOULDING ASSEMBLY
Refer to PROCEDURE - Step 15
- REMOVE FRONT DOOR REAR WINDOW FRAME MOULDING
Refer to PROCEDURE - Step 5
- REMOVE FRONT DOOR UPPER WINDOW FRAME MOULDING
Refer to PROCEDURE - Step 6
- REMOVE NO. 1 BLACK OUT TAPE
Refer to PROCEDURE - Step 19
- REMOVE NO. 2 BLACK OUT TAPE
Refer to PROCEDURE - Step 20
