Removal [10/2014 - ]: Procedure

  1. REMOVE COURTESY LIGHT ASSEMBLY
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

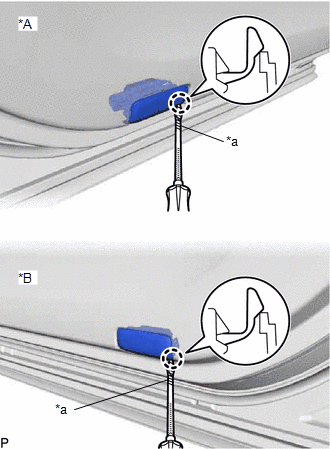

      GTY588696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A for LH Side
      *B for RH Side
      *a Protective Tape
    2. Disconnect the connector to remove the courtesy light assembly.
  2. REMOVE COURTESY LIGHT BULB
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the courtesy light housing with the courtesy light cover as shown in the illustration.
      GTY473022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape
    2. Remove the courtesy light cover from the courtesy light housing as shown in the illustration.
      GTY453246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the courtesy light bulb from the courtesy light housing.
      GTY436857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
