Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    (Refer to REMOVAL [10/2014 - 10/2015] or REMOVAL [10/2015 - ] )

  2. REMOVE NO. 2 FRONT BUMPER SUPPORT SPACER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 . Refer to PROCEDURE - Step 16

  3. REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

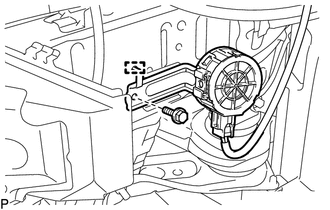

    1. Remove the bolt.
      GTY474144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide.

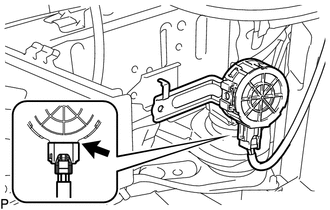

    3. Disconnect the connector to remove the vehicle approaching speaker assembly.
      GTY481380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
