Disassembly [10/2014 - 10/2015]: Procedure

  1. REMOVE FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY

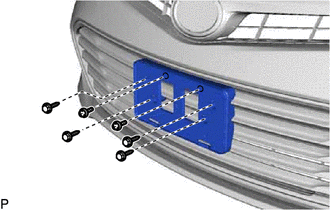

    1. Remove the 6 screws and front license plate bracket sub-assembly.
      GTY576915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT FENDER LINER RETAINER

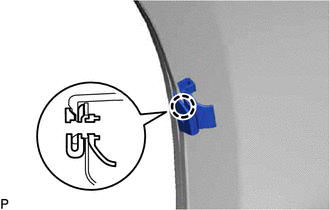

    1. Disengage the claw to remove the front fender liner retainer.
      GTY576917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  3. REMOVE FRONT TURN SIGNAL LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  4. REMOVE FRONT TURN SIGNAL LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE FRONT BUMPER HOLE COVER LH (w/o Fog Light)

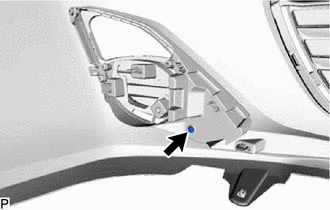

    1. Remove the screw.
      GTY576991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

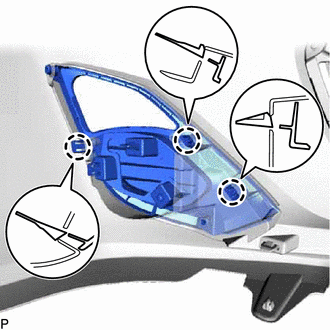

    2. Disengage the 3 claws to remove the front bumper hole cover LH.
      GTY576992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT BUMPER HOLE COVER RH (w/o Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  7. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

    Refer to PROCEDURE - Step 2

  8. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE FOG LIGHT COVER LH (w/ Fog Light)

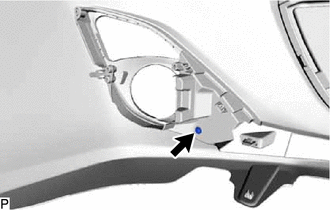

    1. Remove the screw.
      GTY576918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

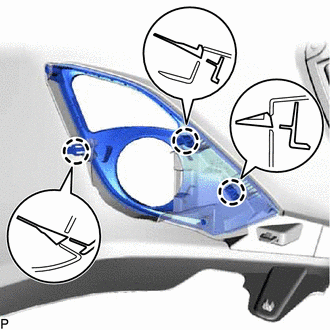

    2. Disengage the 3 claws to remove the fog light cover LH.
      GTY576993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FOG LIGHT COVER RH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE LOWER FRONT BUMPER COVER

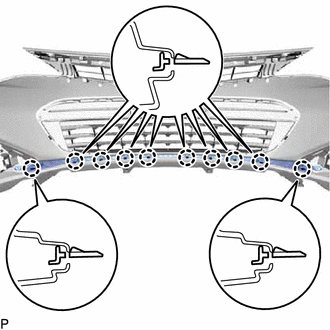

    1. Disengage the 10 claws to remove the lower front bumper cover.
      GTY577000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE LOWER NO. 1 RADIATOR GRILLE

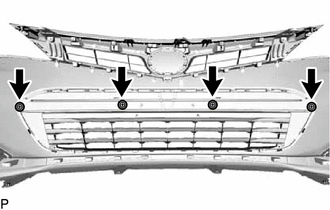

    1. Remove the 4 screws.
      GTY577002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

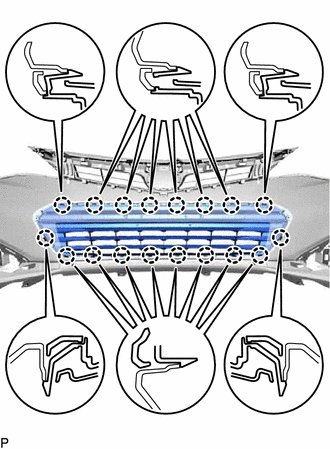

    2. Disengage the 18 claws to remove the lower No. 1 radiator grille.
      GTY576999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE HOOD TO RADIATOR GRILLE SEAL

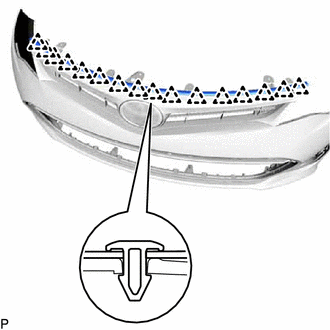

    1. Disengage the 16 clips to remove the hood to radiator grille seal.
      GTY606105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

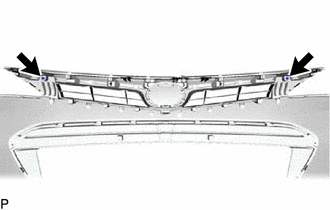

    1. Remove the 2 screws.
      GTY606106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

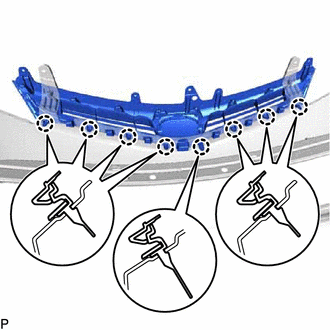

    2. Disengage the 8 claws to remove the radiator grille sub-assembly.
      GTY577004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM (w/o Dynamic Radar Cruise Control System)

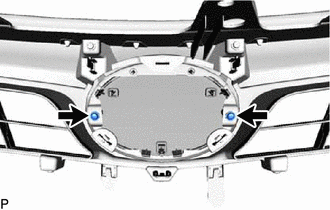

    1. Remove the 2 screws.
      GTY577010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

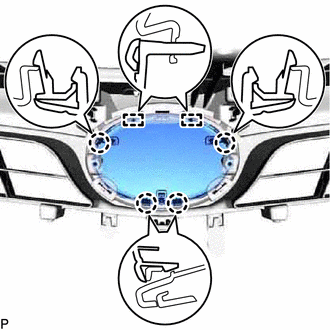

    2. Disengage the 2 guides and 4 claws to remove the radiator grille (or front panel) emblem.
      GTY577007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM (w/ Dynamic Radar Cruise Control System)

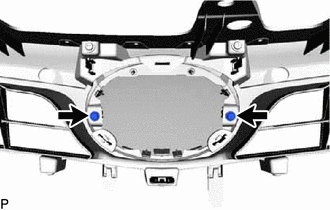

    1. Remove the 2 screws.
      GTY577003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

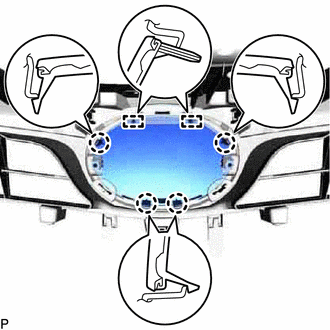

    2. Disengage the 2 guides and 4 claws to remove the radiator grille (or front panel) emblem.
      GTY577008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE LOWER RADIATOR GRILLE GARNISH

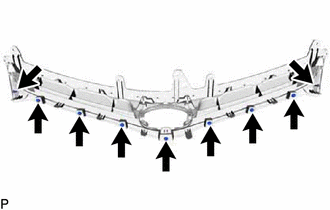

    1. Remove the 9 screws.
      GTY606107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

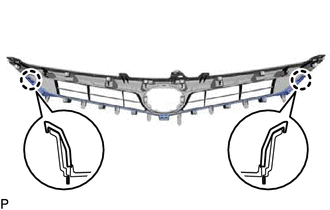

    2. Disengage the 2 claws to remove the lower radiator grille garnish.
      GTY606100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE RADIATOR GRILLE
    1. Remove the 8 screws.
      GTY576978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws to remove the radiator grille from the inner radiator grille.
      GTY576977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 2 FRONT BUMPER STAY LH

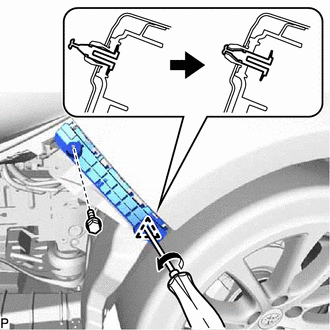

    1. Remove the bolt.
      GTY382524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disengage the clip to remove the No. 2 front bumper stay LH as shown in the illustration.
  20. REMOVE NO. 2 FRONT BUMPER STAY RH

    HINT:

    Use the same procedure as for the LH side.

  21. REMOVE FRONT BUMPER ENERGY ABSORBER

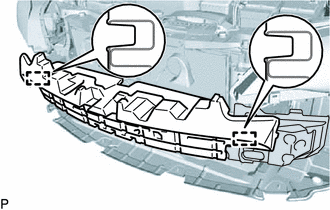

    1. Disengage the 2 guides to remove the front bumper energy absorber.
      GTY558900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 2 FRONT BUMPER SUPPORT SPACER SUB-ASSEMBLY

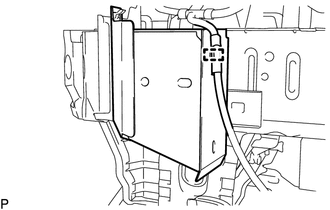

    1. Disengage the clamp.
      GTY554571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

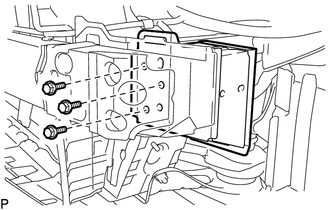

    2. Remove the 3 bolts.
      GTY601070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

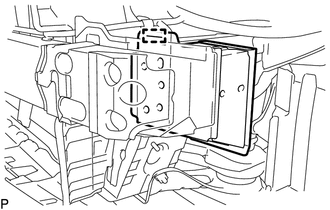

    3. Disengage the guide and remove the No. 2 front bumper support spacer sub-assembly.
      GTY554572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FRONT BUMPER REINFORCEMENT

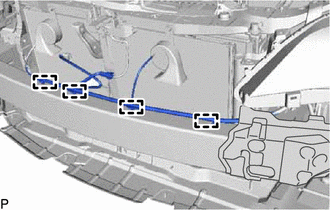

    1. Disengage the 4 clamps.
      GTY579713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

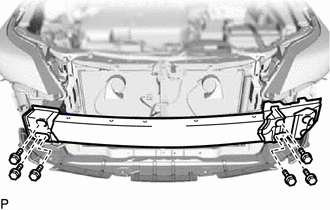

    2. Remove the 6 bolts and front bumper reinforcement.
      GTY579726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
