Disassembly [10/2015 - ]: Procedure

  1. REMOVE FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY
    1. Remove the 4 screws and front license plate bracket sub-assembly.
      GTY538666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT TURN SIGNAL LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT TURN SIGNAL LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE FRONT FENDER LINER RETAINER
    1. Disengage the claw to remove the front fender liner retainer.
      GTY576917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  5. REMOVE HOOD TO RADIATOR GRILLE SEAL
    1. Disengage the 16 clips to remove the hood to radiator grille seal.
      GTY597552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Toyota Safety Sense P)

    Refer to PROCEDURE - Step 2

  7. REMOVE RADIATOR GRILLE SUB-ASSEMBLY
    1. Remove the 2 screws.
      GTY538631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

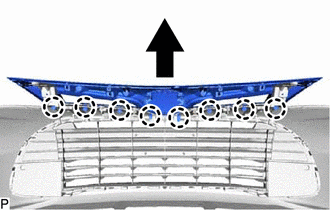

    2. Disengage the 8 claws to remove the radiator grille sub-assembly as shown in the illustration.
      GTY538632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM (w/o Toyota Safety Sense P)
    1. Remove the 2 spring nuts.
      GTY538626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 pins and 2 claws to remove the radiator grille (or front panel) emblem.
      GTY538627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM (w/ Toyota Safety Sense P)
    1. Remove the 2 spring nuts.
      GTY597515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 pins and 2 claws to remove the radiator grille (or front panel) emblem.
      GTY538619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE RADIATOR GRILLE
    1. Remove the 4 screws.
      GTY597513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws and guide to remove the radiator grille.
      GTY538620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT BUMPER SUPPORT
    1. Remove the 2 screws.
      GTY538629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 clips to remove the radiator grille support.
      GTY538630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE LOWER NO. 1 RADIATOR GRILLE
    1. Remove the 2 screws.
      GTY597516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 19 claws and 4 guides to remove the lower No. 1 radiator grille.
      GTY538625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 2 FRONT BUMPER STAY LH
    1. Remove the bolt.
      GTY382524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disengage the clip to remove the No. 2 front bumper stay LH as shown in the illustration.
  14. REMOVE NO. 2 FRONT BUMPER STAY RH

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE FRONT BUMPER ENERGY ABSORBER
    1. Disengage the 2 guides to remove the front bumper energy absorber.
      GTY538617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 FRONT BUMPER SUPPORT SPACER SUB-ASSEMBLY
    1. Disengage the clamp.
      GTY554571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts.
      GTY601070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guide to remove the No. 2 front bumper support spacer sub-assembly.
      GTY554572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT BUMPER REINFORCEMENT
    1. Disengage the 4 clamps.
      GTY538615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 bolts and front bumper reinforcement.
      GTY538616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
