Removal [10/2014 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing (Refer to PRECAUTION [10/2014 - 10/2015] or PRECAUTION [10/2015 - ] ).

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

  4. REMOVE REAR SEAT HEADREST ASSEMBLY
  5. REMOVE REAR SEAT CUSHION ASSEMBLY

    See step  5

  6. REMOVE REAR SEATBACK ASSEMBLY

    See step  7

  7. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY WITH BOX

    See step  1 See step  1

  8. REMOVE REAR SEAT AIRBAG ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR SEAT AIRBAG ASSEMBLY RH

    See step  12 See step  12

  10. REMOVE REAR SEAT SHOULDER BELT GUIDE LH (for LH Side)

    See step  13 See step  13

  11. REMOVE REAR SEAT SHOULDER BELT GUIDE LH (for Center)

    See step  14 See step  14

  12. REMOVE REAR SEAT SHOULDER BELT GUIDE RH

    See step  15 See step  15

  13. REMOVE REAR SEAT HEADREST SUPPORT (for LH Side)

    See step  16 See step  16

  14. REMOVE REAR SEAT HEADREST SUPPORT (for RH Side)

    See step  17 See step  17

  15. REMOVE BENCH TYPE REAR SEATBACK COVER

    See step  18 See step  18

  16. REMOVE SEAT HEATER ASSEMBLY

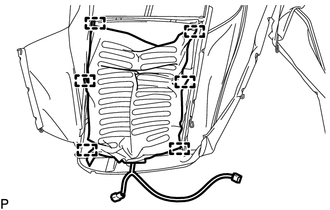

    1. Remove the 6 tag pins and seat heater assembly from the bench type rear seatback cover.
      GTY371269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for both the RH side and LH side.
