Removal [10/2014 - ]: Procedure

  1. REMOVE OUTER REAR VIEW MIRROR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE OUTER MIRROR COVER

    Refer to PROCEDURE - Step 2

  3. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY
    1. for reused side turn signal light assembly:

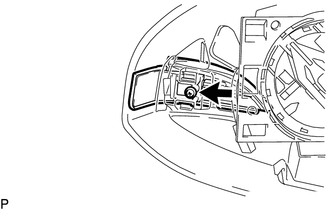

      1. Remove the screw.
        GTY362352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

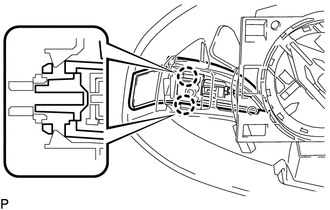

    2. Disengage the 2 claws.
      GTY363127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

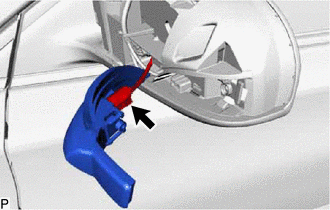

    3. Disconnect the connector to remove the side turn signal light assembly.
      GTY362304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
