Removal [10/2014 - ]: Procedure

  1. REMOVE OUTER REAR VIEW MIRROR SUB-ASSEMBLY

    See step  1

  2. REMOVE OUTER MIRROR COVER

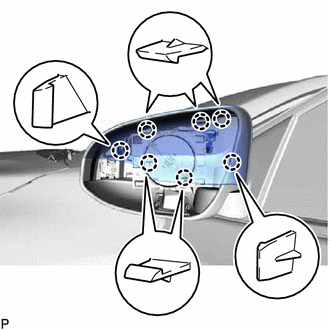

    1. Disengage the 7 claws to remove the outer mirror cover.
      GTY362294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
