Removal [10/2014 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE BAGGAGE HOLDER NET (w/ Partition Net)

    Refer to PROCEDURE - Step 1

  3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 3

  5. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 4

  6. REMOVE LUGGAGE COMPARTMENT FRONT TRIM COVER

    Refer to PROCEDURE - Step 5

  7. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH (for LH Side)

    Refer to PROCEDURE - Step 6

  8. REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for RH Side)

    Refer to PROCEDURE - Step 2

  9. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH (for RH Side)

    Refer to PROCEDURE - Step 8

  10. REMOVE REAR COMBINATION LIGHT ASSEMBLY
    1. for LH Side:
      1. Disengage the clamp.

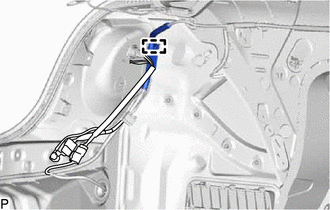

        GTY367145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.

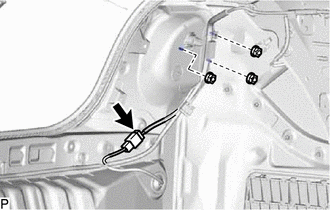

      GTY367147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 nuts.
    4. Disengage the clip and guide to remove the rear combination light assembly as shown in the illustration.

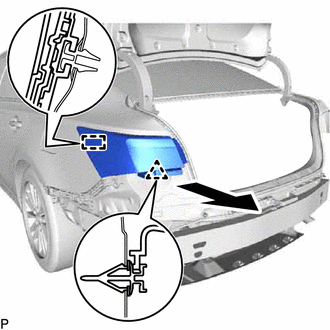

      GTY367152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the guide to remove the rear combination light gasket.

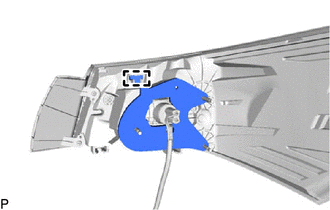

      GTY362351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
