Removal [10/2014 - ]: Procedure

1. Remove the baggage holder net.

1. Remove the luggage compartment floor mat.

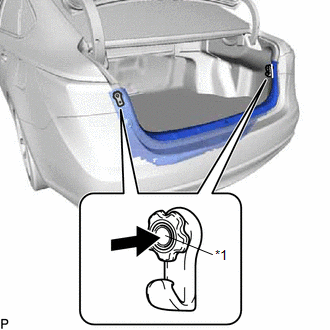

1. Push the 2 pins and remove the 2 No. 1 luggage compartment trim hooks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1

   Pin

1. Using a clip remover, remove the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 4 clips and 3 guides and remove the rear floor finish plate as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

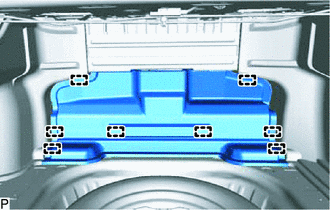

1. Disengage the 8 fasteners to remove the luggage compartment front trim cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a clip remover, remove the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

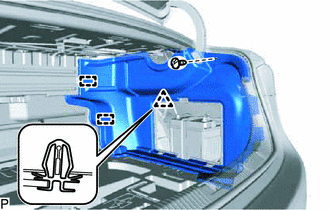

2. Disengage the 2 fasteners to remove the luggage compartment inner trim cover LH.

Refer to PROCEDURE - Step 2

1. Using a clip remover, remove the clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

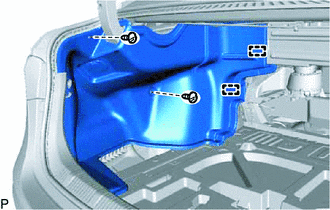

2. Disengage the clip and 2 fasteners to remove the luggage compartment inner trim cover RH.

1. Remove the clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Fastener
   *b	Guide

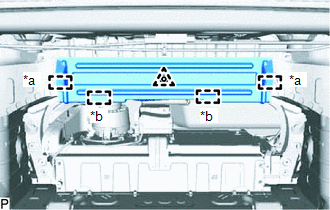

2. Disengage the 2 fasteners and 2 guides to remove the luggage compartment rear trim cover.

See step  1

1. Remove the 2 clips and No. 2 wiring harness protector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the guide as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disconnect the luggage door lock control cable sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

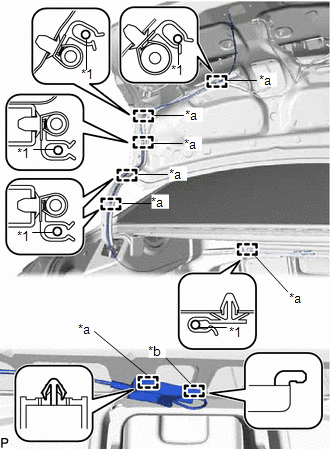

4. Disengage the 7 clamps and guide to remove the luggage door lock control cable sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Luggage Door Lock Control Cable Sub-assembly
   *a	Clamp
   *b	Guide
