Disassembly [12/2016 - ]: Procedure

  1. REMOVE NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    for 6 Sensor Type:

    Refer to PROCEDURE - Step 2

  2. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    for 6 Sensor Type:

    Refer to PROCEDURE - Step 3

  3. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

    Refer to PROCEDURE - Step 2

  4. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE FOG LIGHT COVER LH (w/o Fog Light)
    1. Remove the 4 screws.
      GTY727630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip.
    3. Disengage the claw to remove the fog light mounting bracket LH.
    4. Remove the screw.
      GTY739963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 clips.
    6. Disengage the 5 claws to remove the fog light cover LH.
  6. REMOVE FOG LIGHT COVER RH (w/o Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  7. REMOVE FOG LIGHT COVER LH (w/ Fog Light)
    1. Remove the 4 screws.
      GTY727629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip.
    3. Disengage the claw to remove the fog light mounting bracket LH.
    4. Remove the screw.
      GTY727550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 clips.
    6. Disengage the 5 claws to remove the fog light cover LH.
  8. REMOVE FOG LIGHT COVER RH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE FRONT FENDER LINER RETAINER
    1. Disengage the claw to remove the front fender liner retainer.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY727548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT BUMPER SIDE RETAINER LH
    1. Remove the screw.
      GTY727547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip.
    3. Disengage the 3 claws to remove the front bumper side retainer LH.
      GTY727559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 3

  13. REMOVE FRONT BUMPER UPPER CENTER RETAINER
    1. Remove the 8 screws and front bumper upper center retainer.
      GTY723312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH

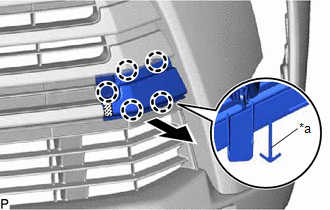

    1. Disengage the 5 claws as shown in the illustration.
      GTY694175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      Double-sided Tape
    2. Disengage the hook to remove the radiator grille garnish sub-assembly LH.
  15. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY
    1. Remove the 4 screws.
      GTY727554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 16 claws to remove the lower radiator grille sub-assembly.
      GTY727553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (w/ Bracket)
    1. Remove the 2 screws and front bumper extension mounting bracket.
      GTY727552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE LOWER FRONT BUMPER COVER

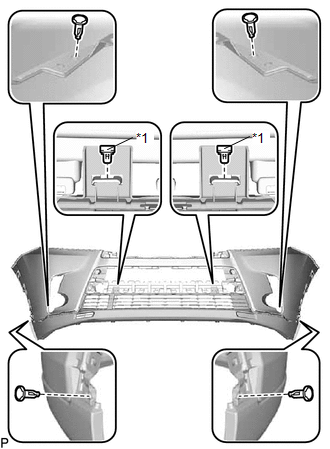

    1. Remove the 2 outside moulding retainers.
      GTY735755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Outside Moulding Retainer
    2. Remove the 4 clips.
    3. Disengage the 18 claws to remove the lower front bumper cover.
      GTY727537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 1 MOULDING TAPE

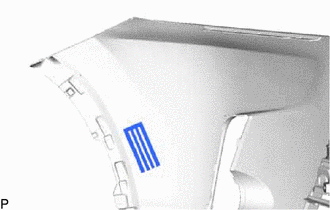

    1. Remove the No. 1 moulding tape.
      GTY727536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  20. REMOVE FRONT BUMPER ENERGY ABSORBER
    GTY727545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 2 guides to remove the front bumper energy absorber.
  21. REMOVE FRONT BUMPER REINFORCEMENT
    1. Disengage the 2 clamps.
      GTY727544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 bolts and front bumper reinforcement.
      GTY727543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE FRONT BUMPER STAY LH
    1. Remove the bolt.
      GTY739944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

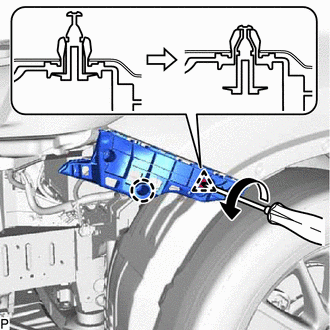

    2. Using a screwdriver, disengage the clip as shown in the illustration.
      GTY727542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the claw to remove the front bumper stay LH.
  23. REMOVE FRONT BUMPER STAY RH

    HINT:

    Use the same procedure as for the LH side.
