Removal [11/2016 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  2. REMOVE FOG LIGHT ASSEMBLY

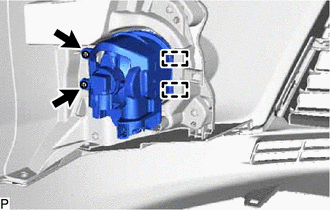

    1. Remove the 2 screws.
      GTY694724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the fog light assembly.
