Removal [11/2016 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [11/2016 - ]

  2. REMOVE RADIATOR GRILLE ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  3. REMOVE FRONT TELEVISION CAMERA ASSEMBLY
    1. Disconnect the connector.

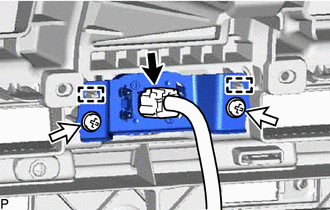

      GTY702222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Disengage the 2 guides and remove the front television camera assembly.
