Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1

  2. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2

  3. REMOVE DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 3

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4 , or refer to PROCEDURE - Step 4

  5. REMOVE SEAT INNER BELT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  7. REMOVE REAR NO. 2 SEAT INNER BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 6

  8. REMOVE REAR SEAT LEG COVER LH
    1. Disengage the 2 claws and 2 guides as indicated by the arrows, in the order shown in the illustration to remove the rear seat leg cover LH.

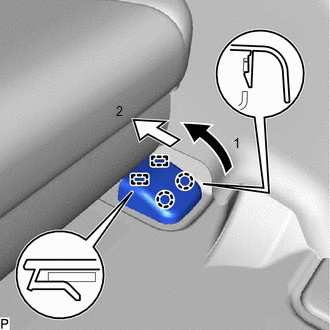

      GTY447985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEAT LEG COVER
    1. Disengage the 2 claws and 2 guides as indicated by the arrows, in the order shown in the illustration to remove the rear seat leg cover.

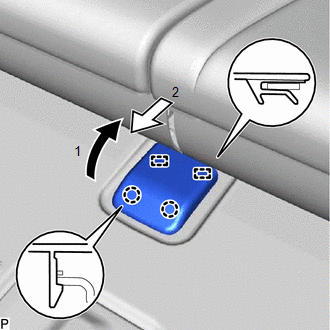

      GTY453500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR SEAT LEG COVER RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE REAR NO. 2 SEAT ASSEMBLY
    1. Remove the 3 bolts on the front side of the rear No. 2 seat assembly.

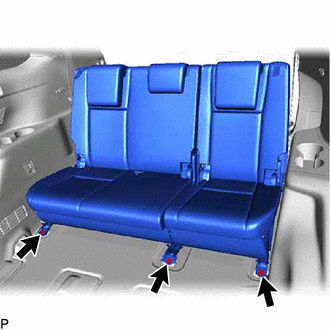

      GTY435298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts on the rear side of the rear No. 2 seat assembly.

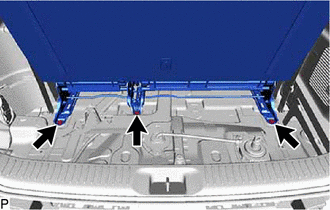

      GTY435297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the rear No. 2 seat assembly.
      NOTE:

      Be careful not to damage the vehicle body.
