- REMOVE DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 1
, or refer to PROCEDURE - Step 1
- REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
, or refer to PROCEDURE - Step 2
- REMOVE DECK SIDE TRIM BOX LH
Refer to PROCEDURE - Step 3
, or refer to PROCEDURE - Step 3
- REMOVE REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 4
, or refer to PROCEDURE - Step 4
- REMOVE REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY (for LH Side)

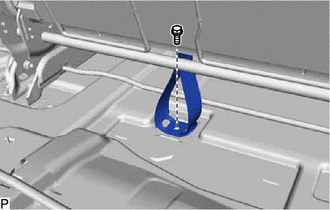

- Remove the bolt to disconnect the floor anchor of the rear No. 2 seat inner belt sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

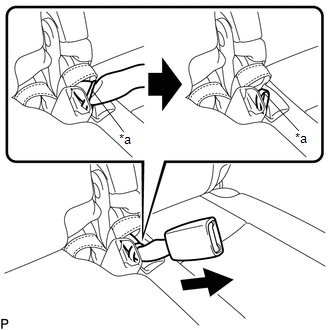

- Remove the rear No. 2 seat inner belt sub-assembly from the rubber band of the rear seat cushion assembly as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR NO. 2 SEAT INNER BELT ASSEMBLY RH (for RH Side)

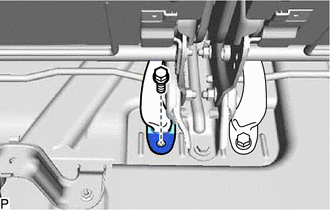

- Remove the bolt to disconnect the floor anchor of the rear No. 2 seat inner belt assembly RH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

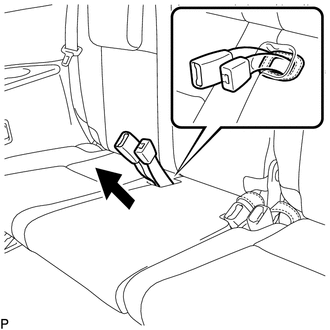

- Remove the rear No. 2 seat inner belt assembly RH from the rear seat cushion assembly as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
