Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1

  2. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2

  3. REMOVE DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 3

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4 , or refer to PROCEDURE - Step 4

  5. REMOVE SEAT INNER BELT SUB-ASSEMBLY
    1. Remove the bolt to disconnect the floor anchor of the seat inner belt sub-assembly.
      GTY450418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

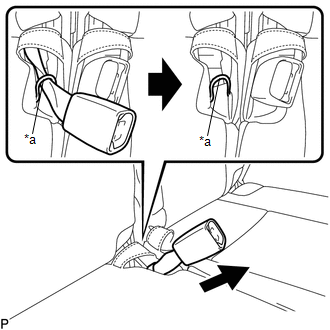

    2. Remove the seat inner belt sub-assembly from the rubber band of the rear seat cushion assembly as shown in the illustration.
      GTY438589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rubber Band
