Installation [12/2013 - 11/2016]: Procedure

INSTALL REAR NO. 2 SEAT ASSEMBLY

Place the rear No. 2 seat assembly in the cabin.
NOTE:
Be careful not to damage the vehicle body.
Temporarily install the rear No. 2 seat assembly with the 6 bolts.

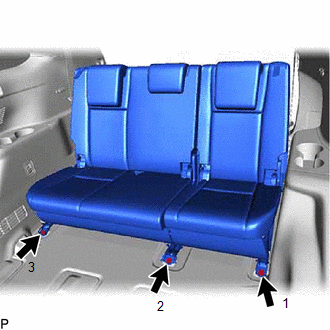

Tighten the 3 bolts on the rear side of the rear No. 2 seat assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Tighten the bolts in the order shown in the illustration.

Torque: 36.7 N*m (374 kgf*cm, 27 ft.*lbf)

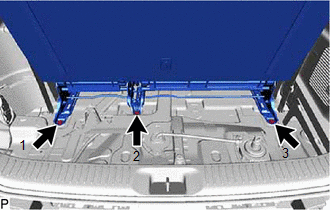

Tighten the 3 bolts on the front side of the rear No. 2 seat assembly to install it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Tighten the bolts in the order shown in the illustration.

Torque: 36.7 N*m (374 kgf*cm, 27 ft.*lbf)

INSTALL REAR SEAT LEG COVER LH

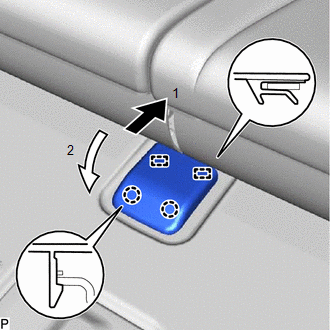

Engage the 2 guides and 2 claws as indicated by the arrows, in the order shown in the illustration to install the rear seat leg cover LH.

INSTALL REAR SEAT LEG COVER

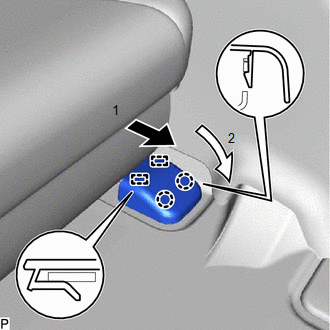

Engage the 2 guides and 2 claws as indicated by the arrows, in the order shown in the illustration to install the rear seat leg cover.

INSTALL REAR SEAT LEG COVER RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY RH
Refer to PROCEDURE - Step 2
INSTALL SEAT INNER BELT SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 68 , or refer to PROCEDURE - Step 69
INSTALL DECK SIDE TRIM BOX LH
Refer to PROCEDURE - Step 69 , or refer to PROCEDURE - Step 70
INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 70 , or refer to PROCEDURE - Step 71
INSTALL DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 71 , or refer to PROCEDURE - Step 72
