Installation [12/2013 - 11/2016]: Procedure

INSTALL REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY (for LH Side)

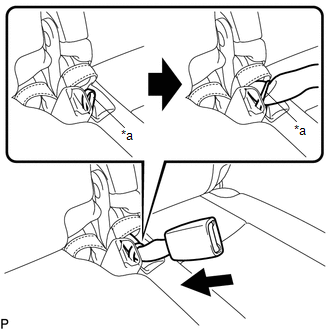

Pass the rear No. 2 seat inner belt sub-assembly through the rubber band of the rear seat cushion assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Rubber Band

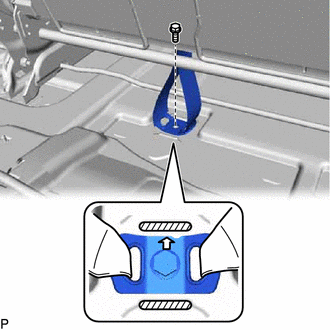

Install the floor anchor of the rear No. 2 seat inner belt sub-assembly with the bolt.

Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTE:

Do not allow the anchor part of the rear No. 2 seat inner belt sub-assembly to overlap the protruding parts of the floor panel.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protruding Part

INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY RH (for RH Side)

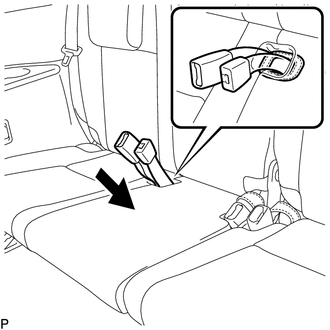

Pass the rear No. 2 seat inner belt assembly RH through the rear seat cushion assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

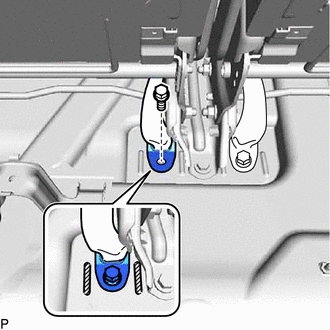

Install the floor anchor of the rear No. 2 seat inner belt assembly RH with the bolt.

Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTE:

Do not allow the anchor part of the rear No. 2 seat inner belt assembly RH to overlap the protruding parts of the floor panel.

Protruding Part

INSTALL REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 68 , or refer to PROCEDURE - Step 69
INSTALL DECK SIDE TRIM BOX LH
Refer to PROCEDURE - Step 69 , or refer to PROCEDURE - Step 70
INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 70 , or refer to PROCEDURE - Step 71
INSTALL DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 71 , or refer to PROCEDURE - Step 72
